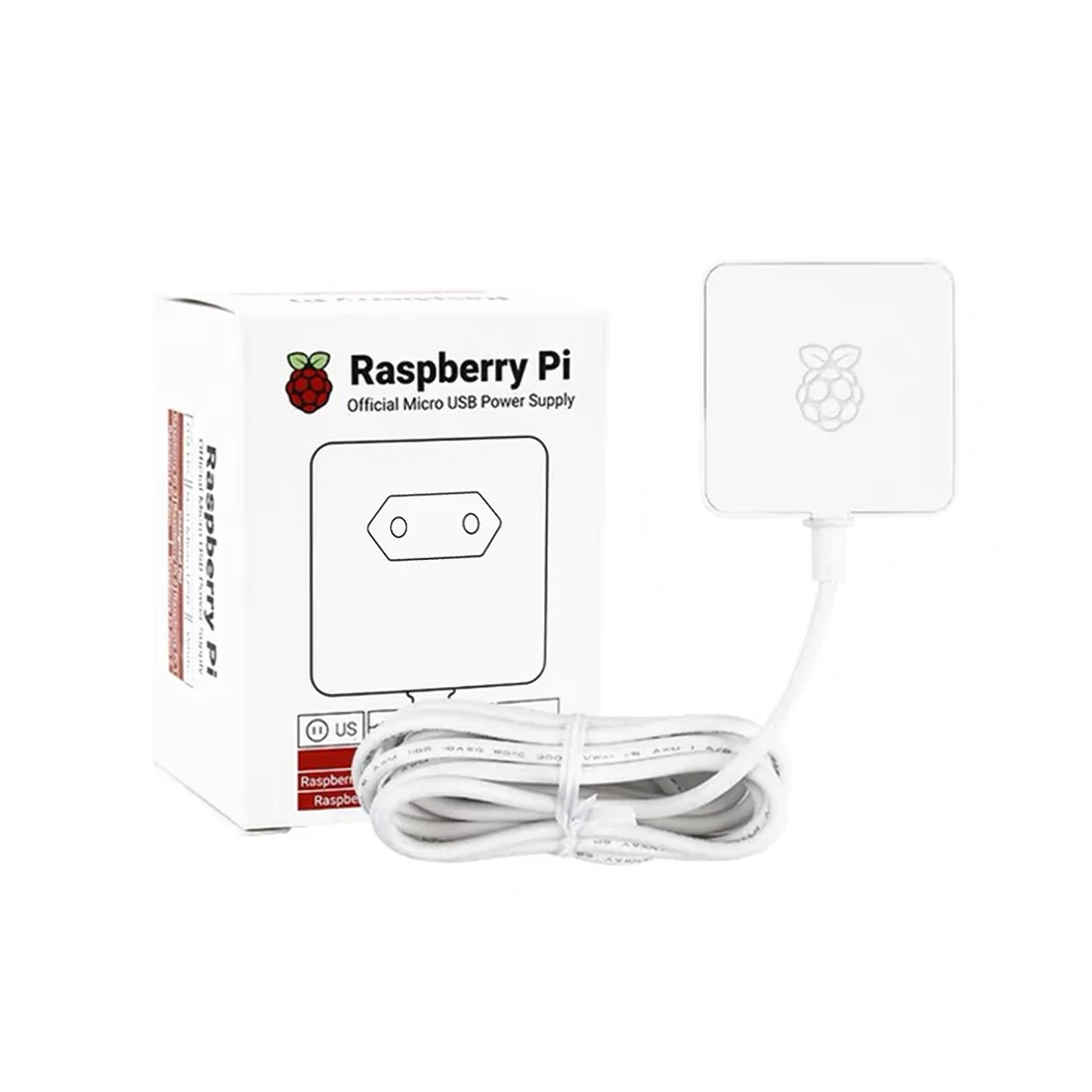

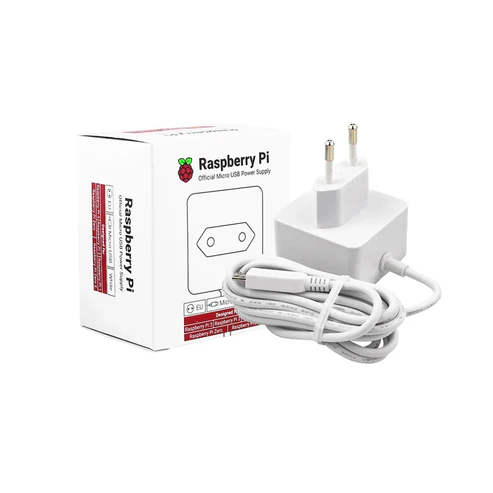

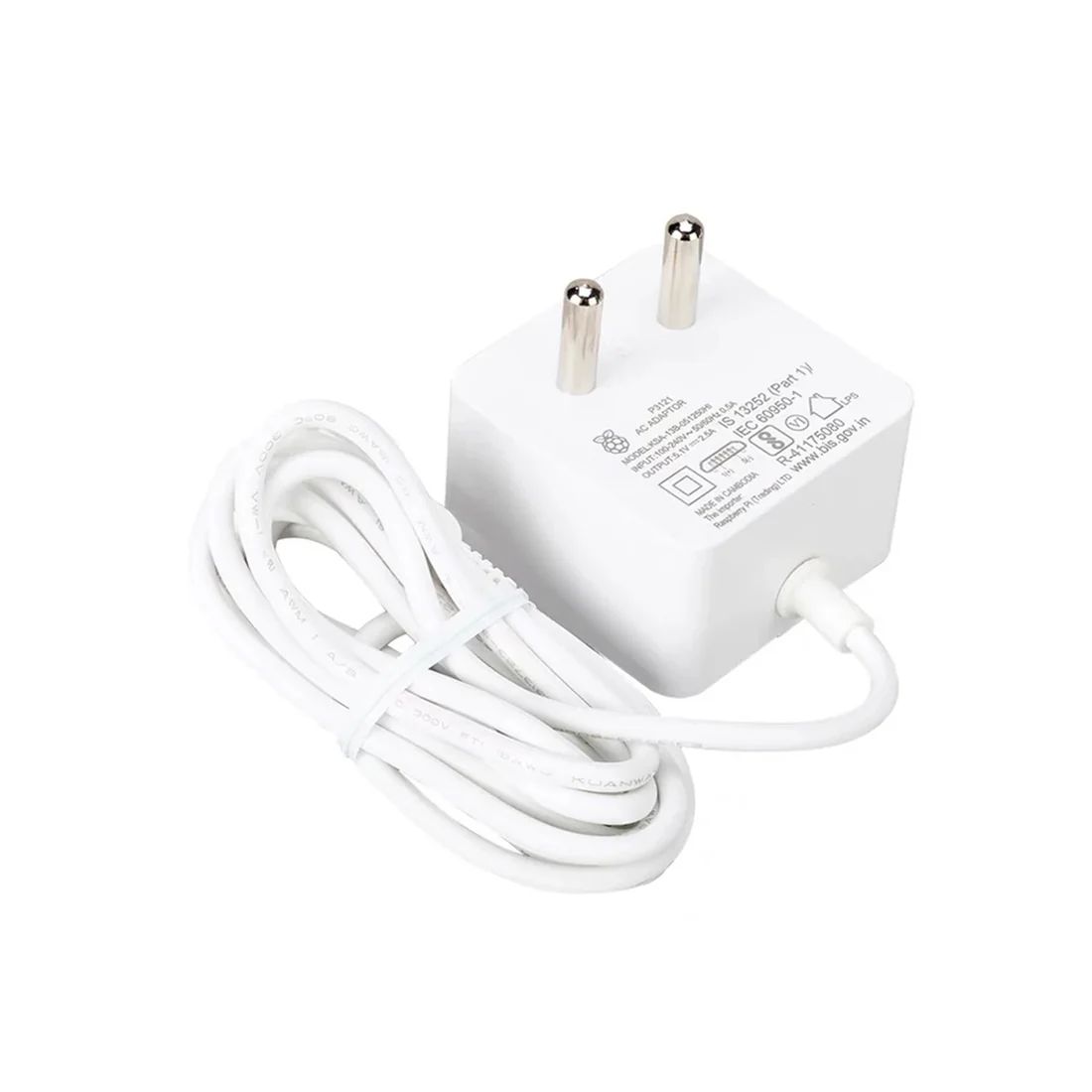

Official Raspberry Pi Micro USB Power Supply for Raspberry Pi A, 3B, 3B+, Zero, Zero W, Zero 2W and Pico

Description

Description:

The official Raspberry Pi Micro USB Power Supply is designed to power any Raspberry Pi computer that features a micro USB connector. The power supply is available in five variants to suit different international power sockets, featuring a captive micro USB cable.

Specifications:

Output-

• Output voltage: +5.1V DC
• Minimum load current: 0.0A
• Nominal load current: 2.5A
• Maximum power: 12.7W
• Load regulation: ±5%
• Line regulation: ±2%
• Ripple & noise: 120mVp-p
• Rise time:  100ms maximum to regulation limits for DC outputs
• Turn-on delay:  3000ms maximum at nominal input AC voltage and full load
• Protection: Short circuit protection Overcurrent protection
• Efficiency:  80.73% minimum (output current from 100%, 75%, 50%, 25%)
• Output cable: 1.5m 18AWG
• Output connector:  micro USB

Input-

• Voltage range: 100–240Vac (rated) 96–264Vac (operating)
• Frequency: 50/60Hz ±3Hz
• Current: 0.5A maximum
• Power consumption (no load): 0.075W maximum
• Inrush current:  No damage shall occur and the input fuse shall not blow

Features:

• 5.1V / 2.5A DC output
• 96-264Vac operating input range
• Short circuit and overcurrent protection
• 1.5m 18AWG captive cable with micro USB output connector
• Available in different variants to suit different international power sockets

Package Included:

1 x Official Raspberry Pi Micro USB Power Supply for Raspberry Pi A, 3B, 3B+, Zero, Zero W, Zero 2W and Pico
