Description:

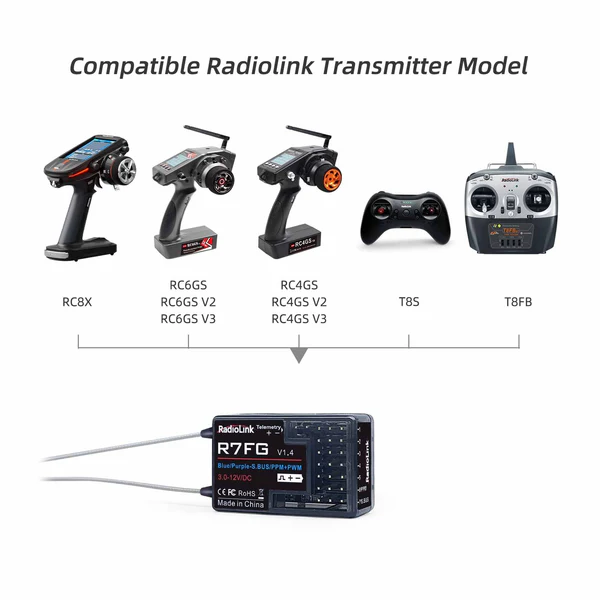

Pseudo random algorithm FHSS communication technology makes Radiolink R7FG RC Receiver control distance up to 1900 feet ( 600 meters ). Integrated gyro for on/off-road RC car vehicles and boats. Support PPM/PWM/SBUS signal output, vehicle’s voltage and RSSI information telemetry, high voltage servo (3-12v DC), waterproof (IPX4) and more, Radiolink R7FG RC Receiver works well with Radiolink RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8FB/T8S radio controller.
Specifications:
- Channel: 7
- Internal Gyro: Yes
- Signal Output: PPM/PWM/S-BUS, 2.4Ghz
- Control Distance: more than 600m
- Waterproof Level: IPX4, Splash Proof
- Model Application: RC car/boat
- Spread Spectrum: FHSS
- Channel Resolution: 4096
- Working Voltage: 3-12V DC
- Operating Current: 30ma
- RF Power: <10dBm
- Antenna Length: 20.5cm
- Size: 3.5*1.8*1.4cm
- Weight: 6g
Features:
- Excellent Anti-interference:Â With pseudo-random FHSS algorithm, which makes Radiolink R7FG RC Receiver with excellent anti-interference ability, control distance up to 1900 feet (600 meters).

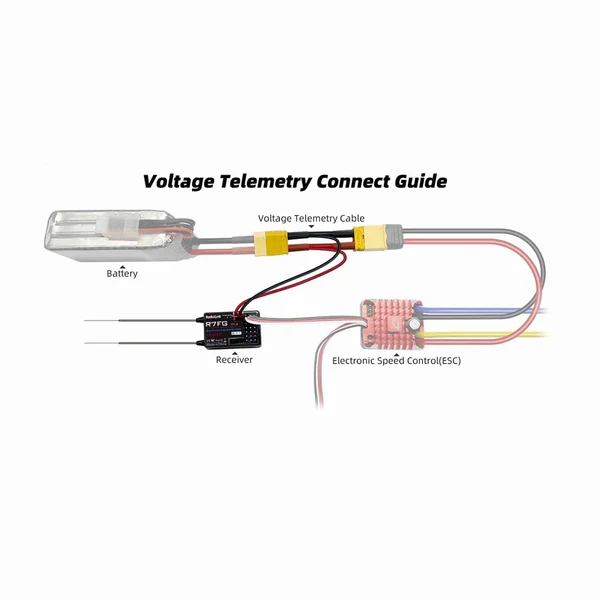

- Real-time Telemetry:Â The telemetry feature can provide real-time vital information like the vehicle’s battery voltage, RSSI signal and more, avoiding battery over-discharge and damage.

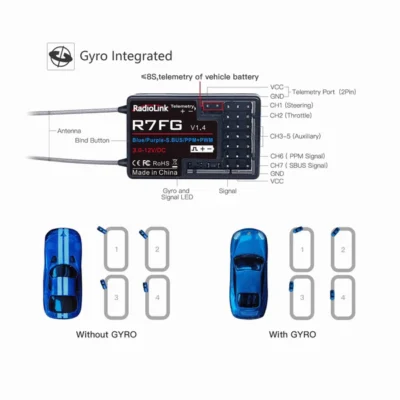

- Integrated Gyro:Â Radiolink R7FG RC Receiver’s built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by the transmitter, which fits drifting and on-road cars.
- Push to Bind:Â No need to bind the plug and any radio setting, only press the bind button for 1 second after powering up the radio and receiver. The high-resolution ratio of 4096, stable signal and fast response.
- Anti-polarity Protection:Â Radiolink R7FG RC Receiver with reverse polarity protection, does not damage the receiver even if you insert the wrong polarity. 3-12v DC support high voltage servo.
Package Included:

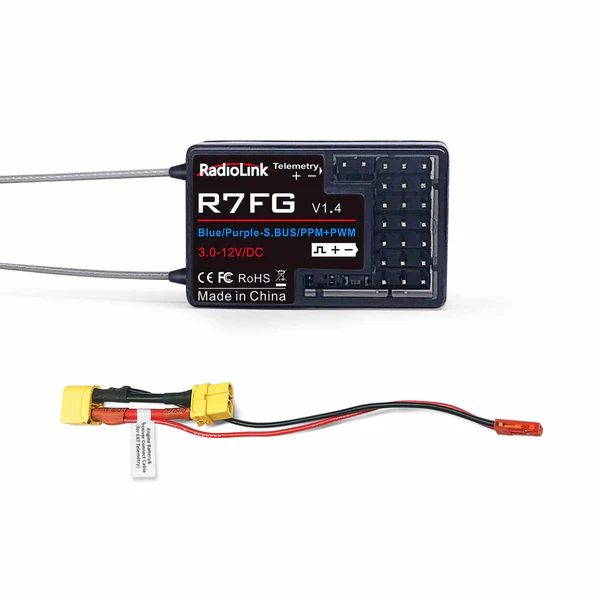

1 x Radiolink R7FG RC Receiver R7FG 7 Channels RC Gyro Receiver, Voltage Telemetry Long Range Control, Water-Splash Proof for RC Crawler Drifting Car, Boat, Works for 2.4Gh Radio Controller RC8X/RC4GS V3/RC6GS V3/T8S/T8FB
