Description
Description:
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field.

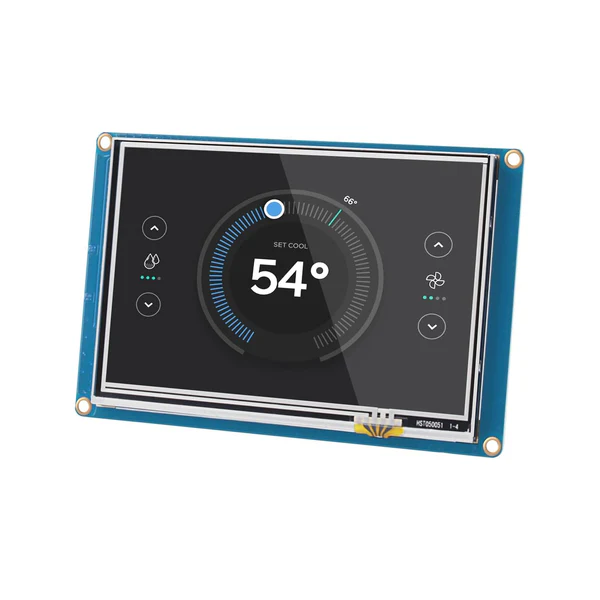

Looking for a cost-effective and feature-rich HMI? Nextion offers advanced touchscreen displays ideal for DIY projects and professional applications. The NX8048T050 is a 5.0″ resistive touchscreen display (800×480) that simplifies user interface design with built-in multimedia capabilities, including audio, video, and animation playback. Its wide operating voltage range (4.75-7V) provides flexibility. Key specifications: 16M Flash, 2KByte RAM, 65k colors.

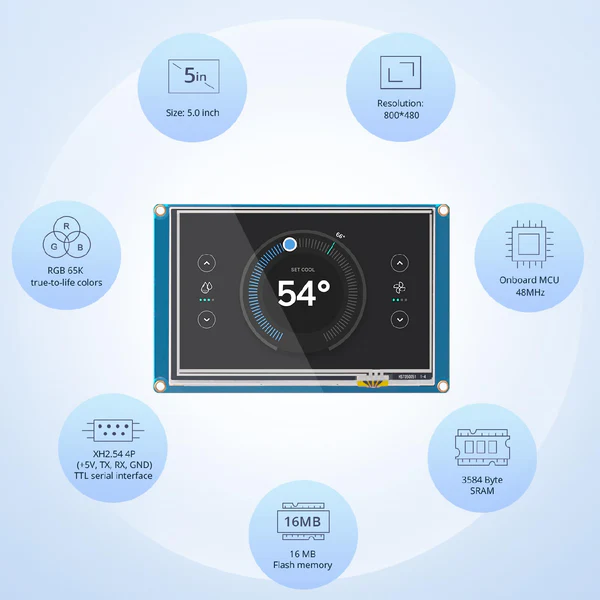

Specifications:
| Model No | NX8048T050 |
| Nextion Type | 011R(R: Resistive Touchscreen) |
| Operating Voltage Range | 4.75~7 V |
| Operating Current | 410 mA |
| Layout Size | 133.5(L)x84(W)x6.2(H) |
| Touch Type | Resistive |
| Colours | 65K (65536) Colors, 16 bit, 5R6G5B |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range | -20°C ~ 80°C |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory | 16 MB |
| RAM Memory | 3584 – BYTE |
Features:
- Broad Compatibility: Works with Raspberry Pi (A+, B+, 2) and Arduino.
- High-Resolution Display: 800×480 resolution with 65K true-to-life colours.
- Resistive Touchscreen: Integrated 4-wire touch panel for interactive control.
- Simple Serial Interface: Easy 4-pin TTL connection.
- Large Onboard Memory: 16M Flash for user applications and data.
- Effortless Firmware Updates: Micro-SD card slot for easy upgrades.
- Adjustable Brightness: 0-230 nit (1% increments).
- Certified Quality: CE/EMC and RoHS certified.

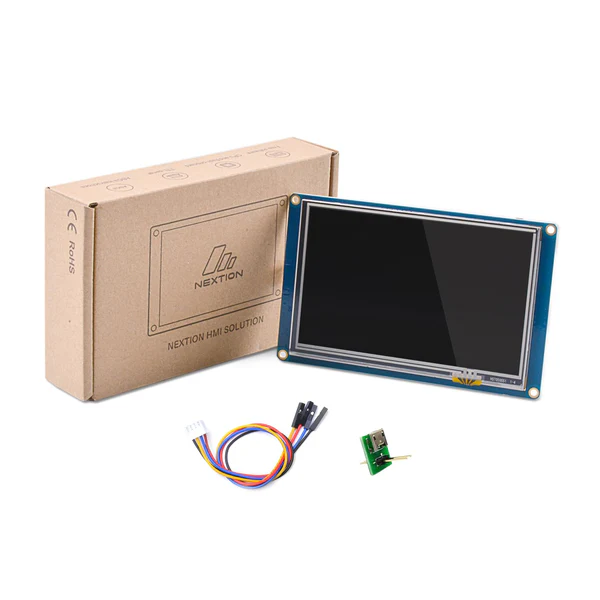

Package Included:
- 1 x Nextion NX8048T050 5.0″ HMI Touch Display
- 1 x Connecting Wires
- 1 x Power Supply Test Board
