Description
Description:

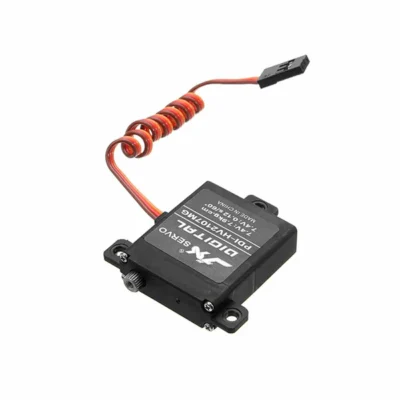

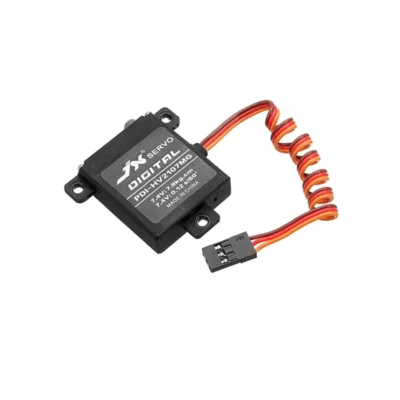

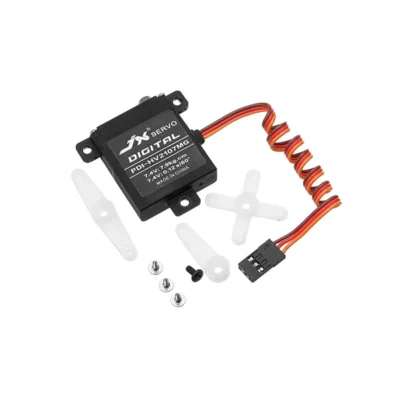

A popular servo for smaller aeroplanes, helis, boats, cars and trucks, This 17-gram metal gear PDI-HV2107MG Servo Motor offers a fine balance between speed and torque and includes three different types of servo arms and fixing screws.
Specifications:
- Control System: Â +Pulse Width Control
- Working Frequency: 1520μs / 330hz
- Operating Voltage: Â DC6~7.4 V
- Operating Temperature Range: -10 to + 60°C
- Operating Speed (6V): 0.14sec/60°
- Operating Speed (7.4V): 0.12 sec/60°
- Stall Torque (6V): 6.8 kg.cm
- Stall Torque (7.4V): 7.9 kg.cm
- Potentiometer Drive: Direct Drive

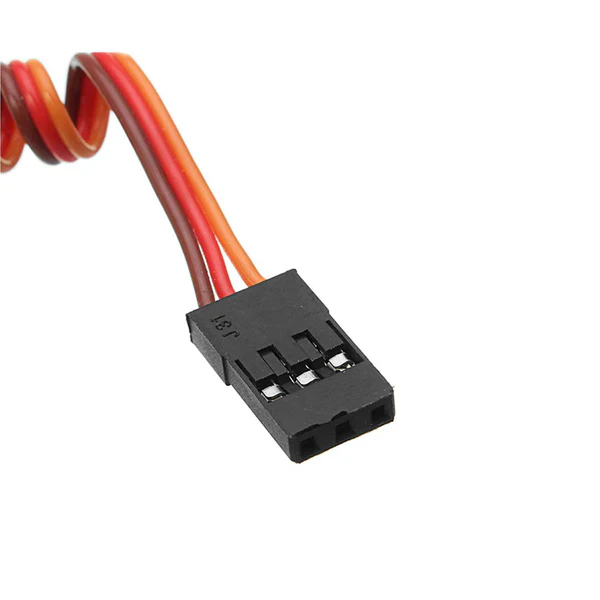

- Connector Wire Length: JR/Futaba 220 mm
- Bearing: 2BB
Features:
- High-performance  digital  standard servo
- High-precision aluminium gears with hard anodizing
- CNC aluminium middle Shel
- PDI-HV2107MG Servo Motor has dual ball bearings
Package Included:
1 x JX Servo PDI-HV2107MG Servo Motor 21g High Torque Digital Standard Servo For RC Model
