Description
Description:

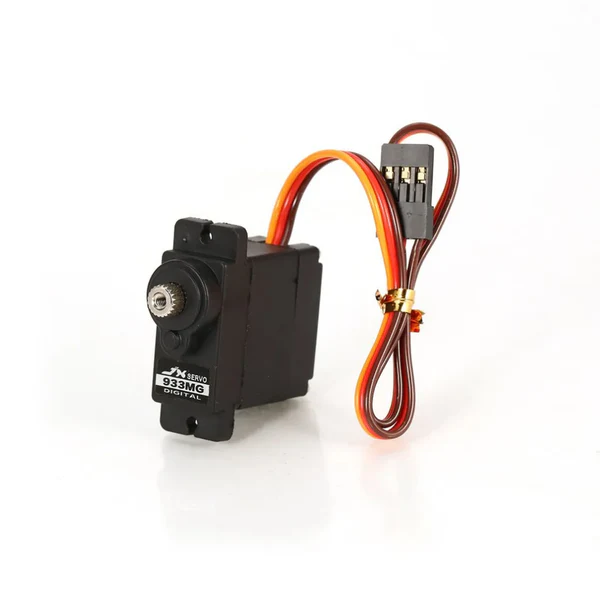

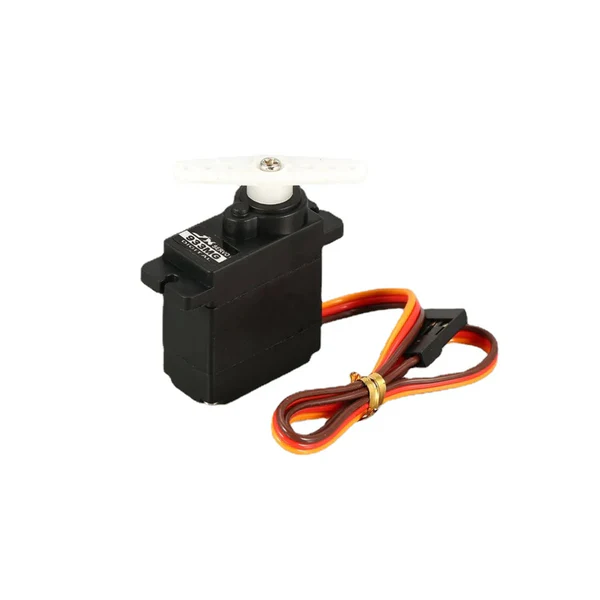

This is JX Servo PDI-933MG 3.3kg large torque metal gear digital servo. This is used in science projects, robotic equipment, and RC models. It has metal gear for a better experience.
Specifications:
- Brand: JX Servo
- Item: PDI-933MG
- Working Frequency: 1520μs / 330hz
- Motor: core motor
- Operating Voltage: DC4.8~6.0 V
- Operating Speed (4.8V): 0.12sec/60°
- Operating Speed (6V): 0.10sec/60°
- Stall Torque (4.8V): 2.8kg.cm
- Stall Torque (6V): 3.5kg.cm
- Dimensions: 23.2*12*30mm
- Weight: 13g
- Connector Wire Length: JR 220 mm
Features:
- High-quality servo for RC Models
- High-precision metal gear
- Mini-size digital servo
Package Included:

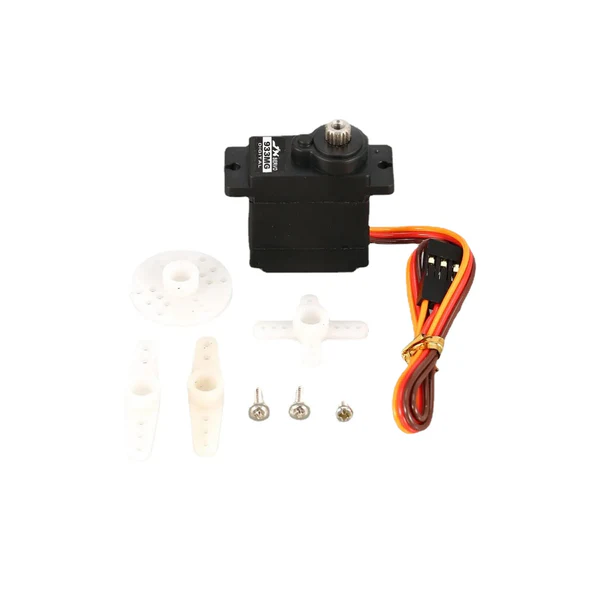

1 x JX Servo PDI-933MG 3.3kg Large Torque Metal Gear Digital Servo For RC Models Accessories
