Description
Description:

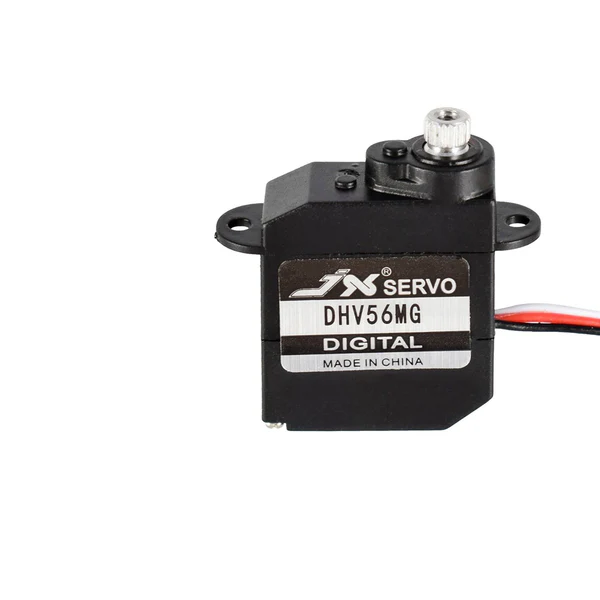

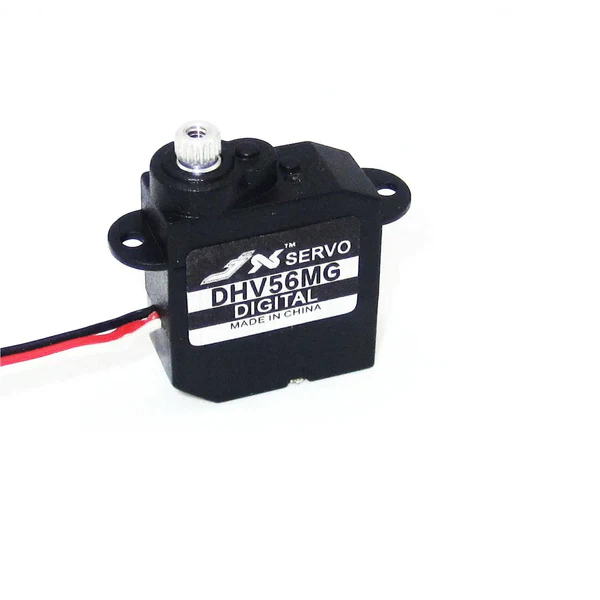

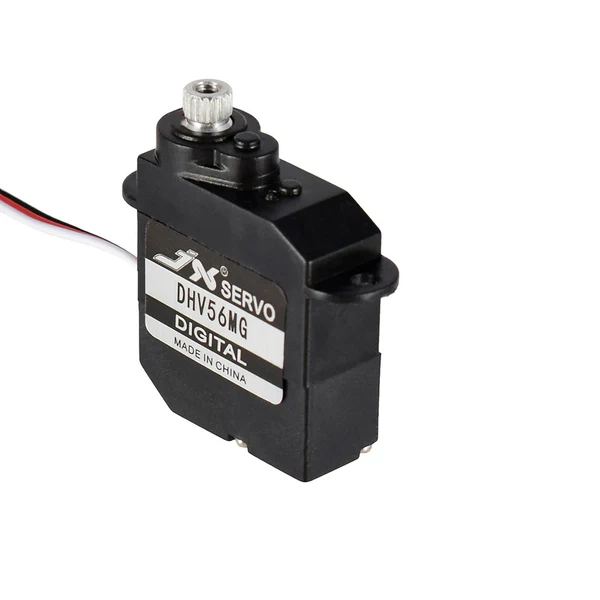

The D56MG Servo Motor is great for small gliders and DLGs or just about any other mini aeroplane using single-cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
Specifications:
- Item: D56MG Servo (low voltage version)
- Weight: 5.6g
- Dimension: 19.8×8.2×21.2mm
- Stall torque: 0.58kg/cm (3.7V),0.7kg/cm (4.2V),0.89kg/cm 5.5V)
- Operating speed: 0.13sec/60degree(3.7v),0.12sec/60degree(4.2V),0.1sec/60degree(5.5V)
- Operating voltage: 3.7~5.5V DC
- Frequency: 1520μs / 330hz
- Servo lead: 150mm length

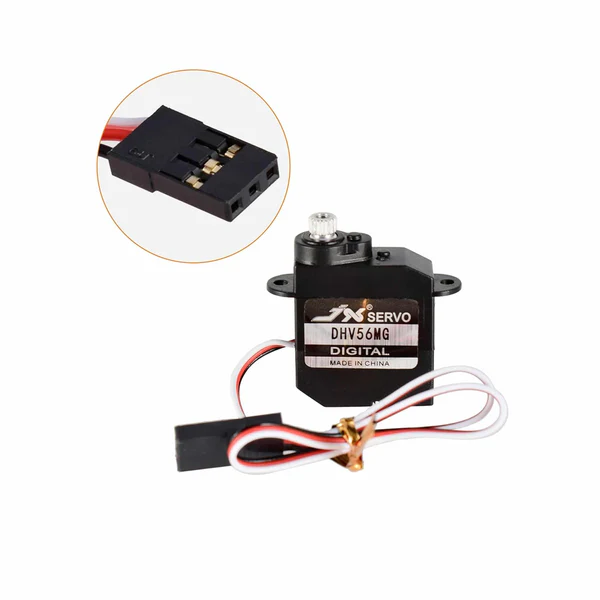

- Servo plug: JR (Fits JR and Futaba)
Features:
- The D56MG Servo Motor is great for small gliders.
- DLGs or just about any other mini aeroplane using single-cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
- The coreless motor provides excellent holding power and precision at a great price.
Package Included:
1 x JX Servo D56MG Servo Motor D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec – RS1322
