Degson 5mm Pitch PCB Terminal Block Degson 3 Pin 5mm PCB Terminal Block PCB Mount Screw Terminal Block Terminal Blocks Connectors High Quality

Description

Description:

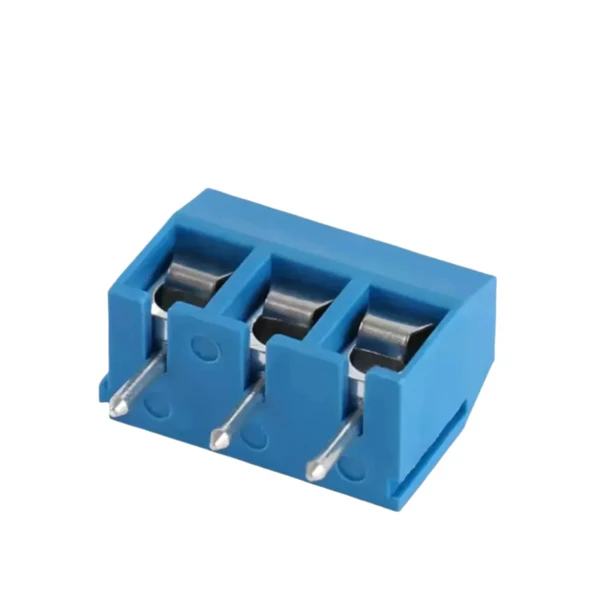

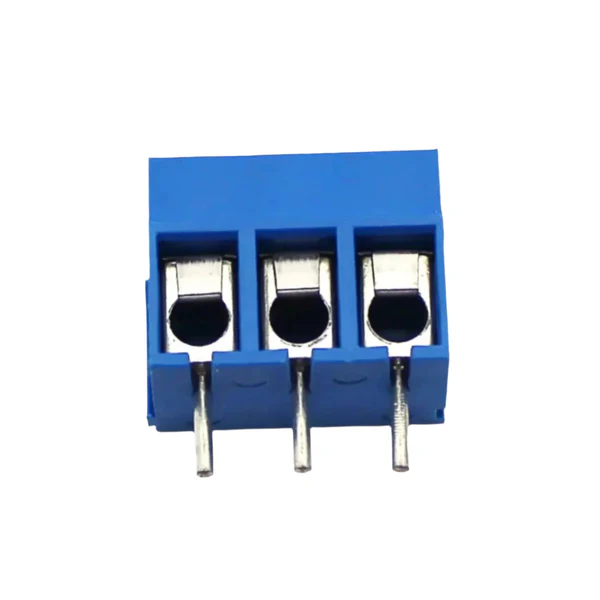

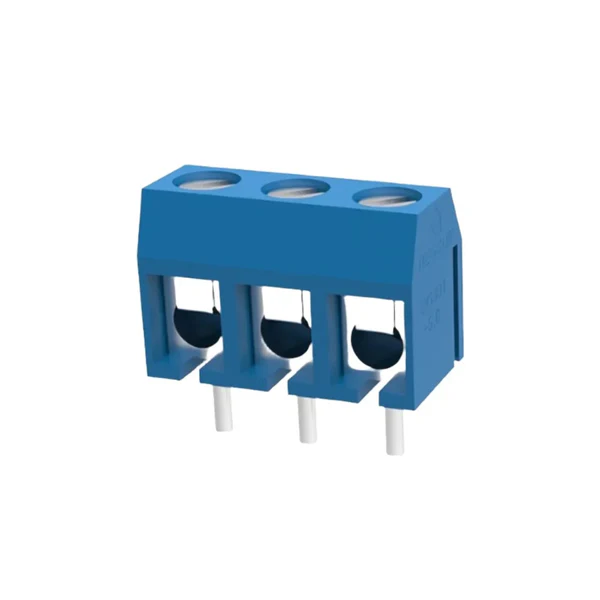

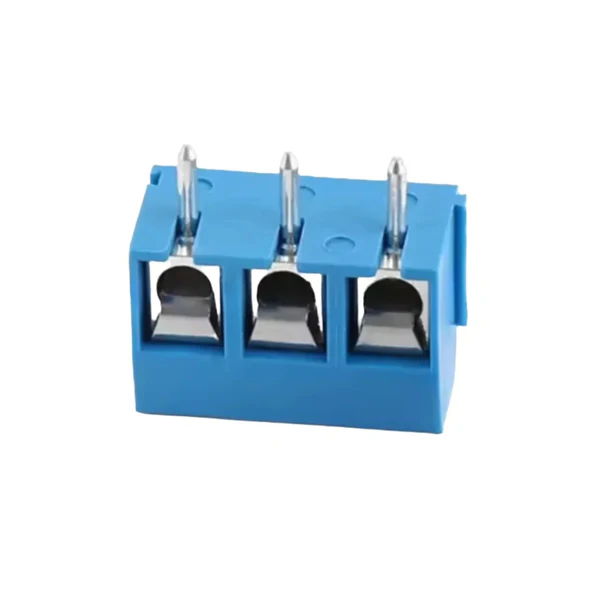

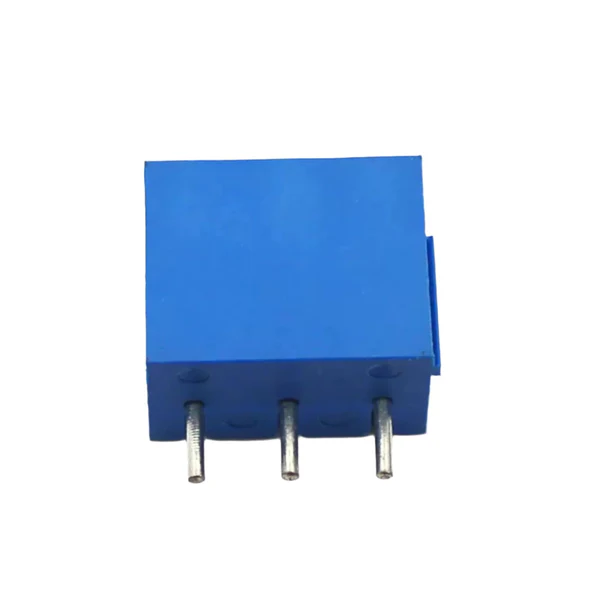

The 3-Pin PCB Terminal by Degson and designed for use in electrical circuits. It features a screw connector with wire protection, allowing for secure and reliable connections. The 5mm Pitch Terminal Block has a pitch of 5.0mm, which is the distance between adjacent terminals.

The Degson 3-Pin 5mm PCB Terminal Block is rated for a maximum current of 17.5A and a maximum voltage of 250V. The voltage rating is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree. This makes it ideal for Degson 3-Way 5mm PCB Connector use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.

Specifications:

• Item Type: PCB terminal block
• Rated Current: 17.5A
• Rated Voltage: 250V
• Allowed Wire Size: 16-14AWG
• Colour: Blue
• No of pins: 3
• Contact Material: Tin
• Pitch: 5mm

Features:

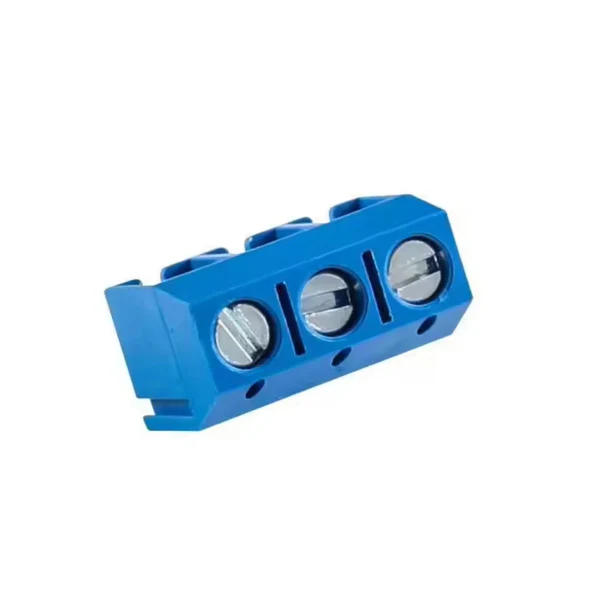

• Screw connector with wire protection The Degson 3 Pin PCB Terminal Block features a screw connector that provides a secure and reliable connection for wires. The wire protection helps prevent damage to the wire during installation and use.
• The pitch size of the terminal block is 5.0mm, which is suitable for a wide range of applications.
• Current and voltage ratings the Degson 3 Pin PCB Terminal Block is rated for a maximum current of 17.5A and a maximum voltage of 250V. This makes it suitable for use in a variety of electrical circuits.
• Wire size compatibility The Degson 3 Pin PCB Terminal Block is designed to accommodate wires with a cross-sectional area of 1.5mm².
• Contact surface the contact surface of the Degson 3 Pin PCB Terminal Block is made of tin, which provides good conductivity and resistance to corrosion.
• Overvoltage category and pollution degree the Degson 3 Pin PCB Terminal Block is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree

Package Included:

1 x Degson 5mm Pitch PCB Terminal Block Degson 3 Pin 5mm PCB Terminal Block PCB Mount Screw Terminal Block Terminal Blocks Connectors High Quality Connector For Arduino
