Description
Description:

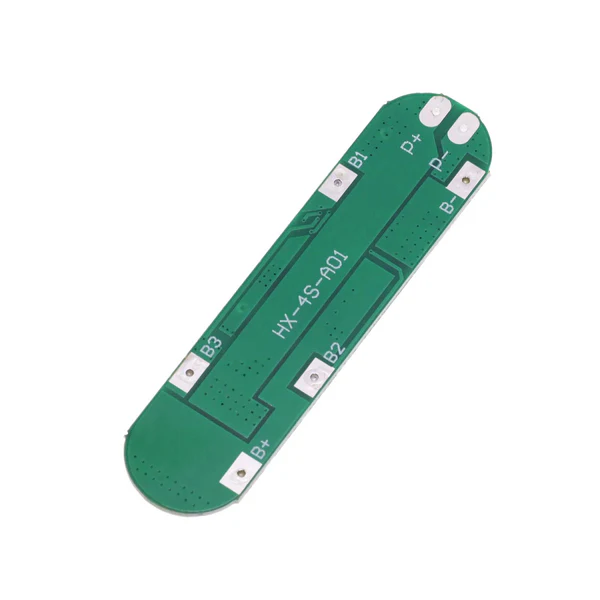

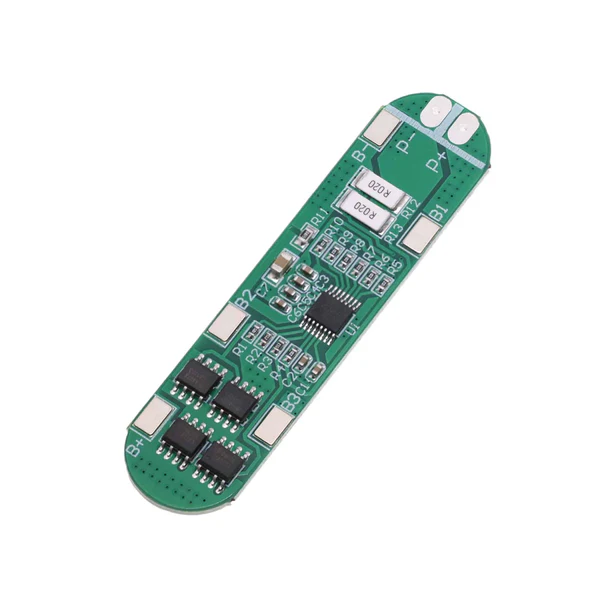

4S 12A BMS Board comes with over-charge, over-discharge, over-current and short circuit protection, for a variety of various shapes 3.7V lithium Ion batteries. 4S 12A BMS Board is Small in size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is safe and reliable.
Specifications:
- Overcharge Protection Voltage: 4.225±0.050 V
- Overcharge Recovery Voltage: 4.125±0.050 V
- Overcharge Protection Delay Time: 1S
- Continuous Discharge Current: 12A
- Over-discharge Protection Voltage: 2.70±0.050 V
- Over-discharge Recovery Voltage: 3.00±0.050 V
- Over-discharge Protection Delay Time: 1S
- Overcurrent Protection Current: 14A
- Short circuit Delay Time: 300uS
Package Included:
1 x 4S 12A BMS Board 14.8v Li-Ion Battery Protection Board 18650 Li-ion Lithium Battery Protection and Charger BMS Module
