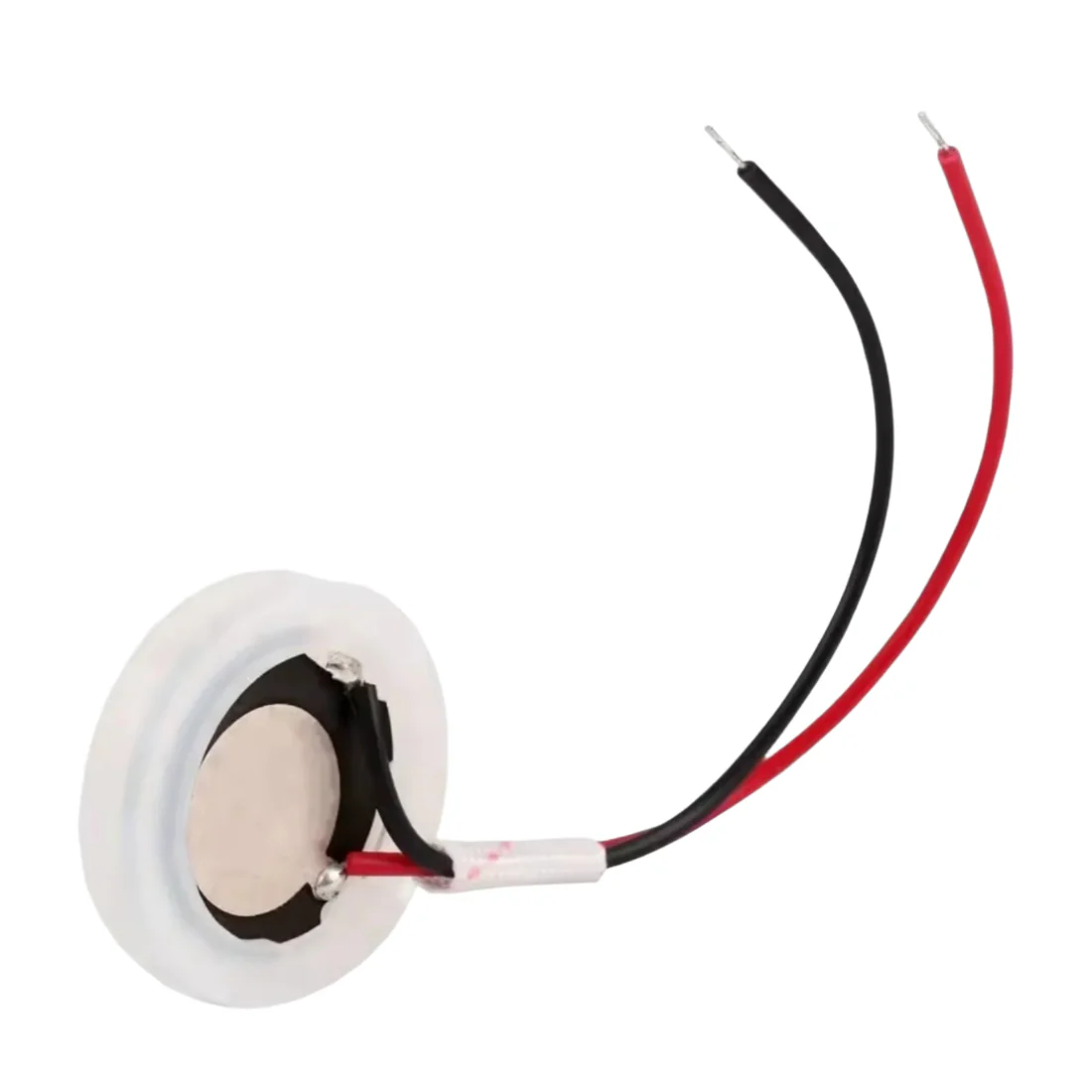

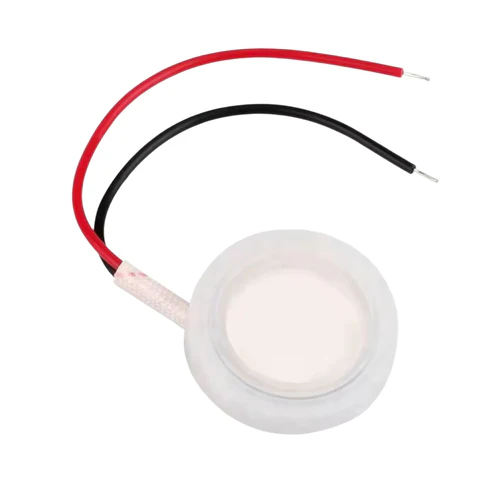

20mm Piezoelectric Humidifier 1.7MHz Energy Conversion Plate High-Frequency Ultrasonic Atomizer Plate For Educational Demonstration

Description

Description:

Experience refreshing humidity with this robust 20mm 1.7MHz piezoelectric humidifier. Crafted from premium materials, it boasts exceptional durability, corrosion resistance, and longevity. Engineered for optimal performance, this humidifier employs electronic high-frequency oscillations to transform liquid water into a fine, flowing mist.

Beyond simply adding moisture to the air, this device releases a significant quantity of beneficial negative ions. These negatively charged particles effectively interact with airborne pollutants like smoke and dust, causing them to precipitate and settle. This not only purifies the air but also helps neutralize harmful substances such as formaldehyde, carbon monoxide, and bacteria.

Specifications:

• Operating Voltage: DC 3.7 ~ 12
• Resonant Frequency (MHz): 1.77
• Resonant Impedance: <2
• Coupling Factor: >52%
• Electrostatic Capacity: 3000 pF
• Spray Quantity: > 110 mL/h

Features:

• Simple operation and long service life.
• This Ceramic Disc is mainly used in the household humidifier.
• Mist Diameter: about 20mm; Resonant frequency:1.70MHz.
• The front surface is plated with titanium. Aging resistant, corrosion resistant, durable.

Package Included:

1 x 20mm 1.7mhz Piezoelectric Humidifier, Energy Conversion Plate
