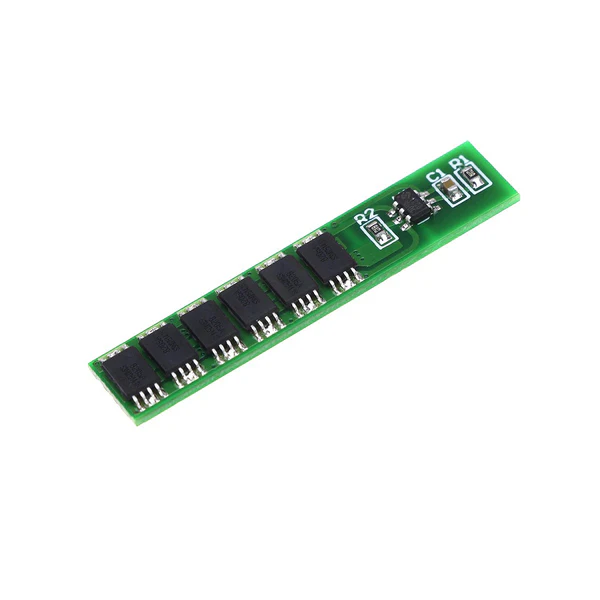

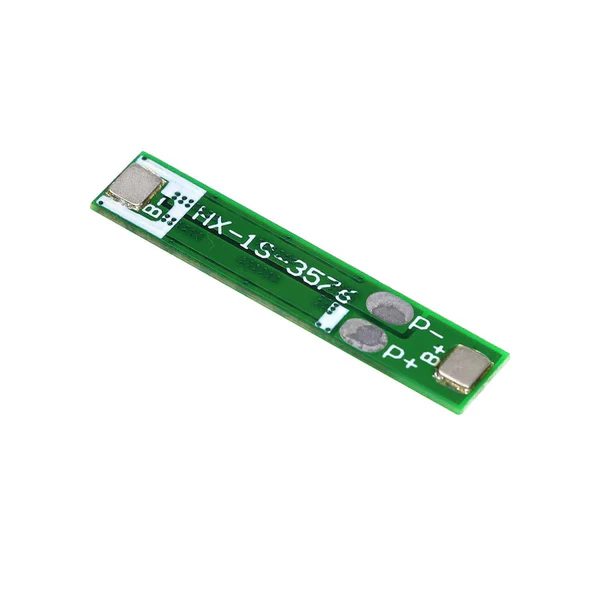

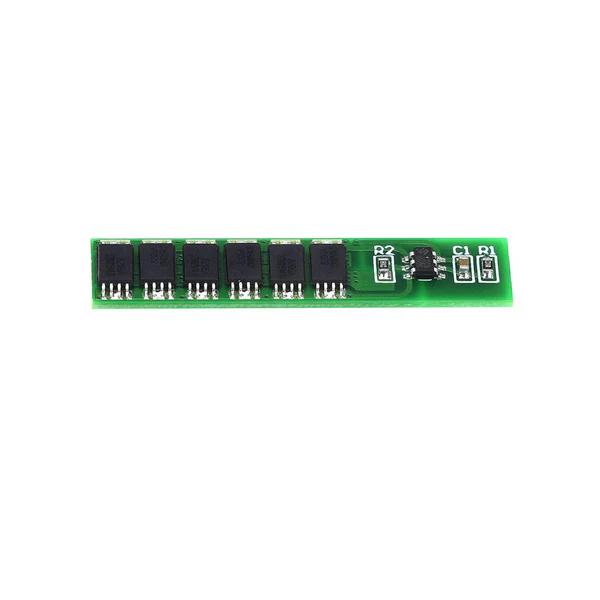

1S 18650 3.7V BMS Board 1S 18650 3.7V lithium battery protection plate 6 MOS

Description

Description:

Nowadays Li-ion batteries are most popular to be used in many indoor and outdoor gadgets, these batteries are preferred due to their high charge storage capacity. Such batteries are widely used in today’s portable devices. They are compact, more efficient and have a high energy intensity compared to other types of batteries.

To overcome such issues, we can use battery protection and battery charging circuits such as this product. This is a 1S 18650 3.7V BMS Board which can be used to charge a single cell of 15 Amp capacity or 2500Mah parallel-connected 5 to 6 li-ion cells. In this MOSFET is employed to do the monitoring task which protects our battery cells from overcharge, over-discharge, and short circuits.

Specifications:

• Battery: 1 Cell
• Input Charging Voltage: 4.2V
• Overcharge Detection Voltage: 4.25± 0.025V
• Over-discharge Detection Voltage: 2.50± 0.08V
• Over Current Protection: 15
• Operating Temperature: -40 ~ +85°C

Features:

• Overcharge detection voltage: 4.25 + 0.05V
• Overcharge release voltage: 4.23 + 0.05V
• discharge detection voltage: 2.45 + 0.1V
• Ceiling continuous current: 12A
• Overcurrent detection current: 15A
• Input Charging voltage: 4.2V

Package Included:

1 x 1S 18650 3.7V BMS Board 1S 18650 3.7V lithium battery protection plate 6 MOS
