Waveshare Ethernet/USB HAT (B) Universal Ethernet/USB HUB HAT Expansion For Raspberry Pi Series, 1x RJ45, 3x USB 2.0

Description

Description:

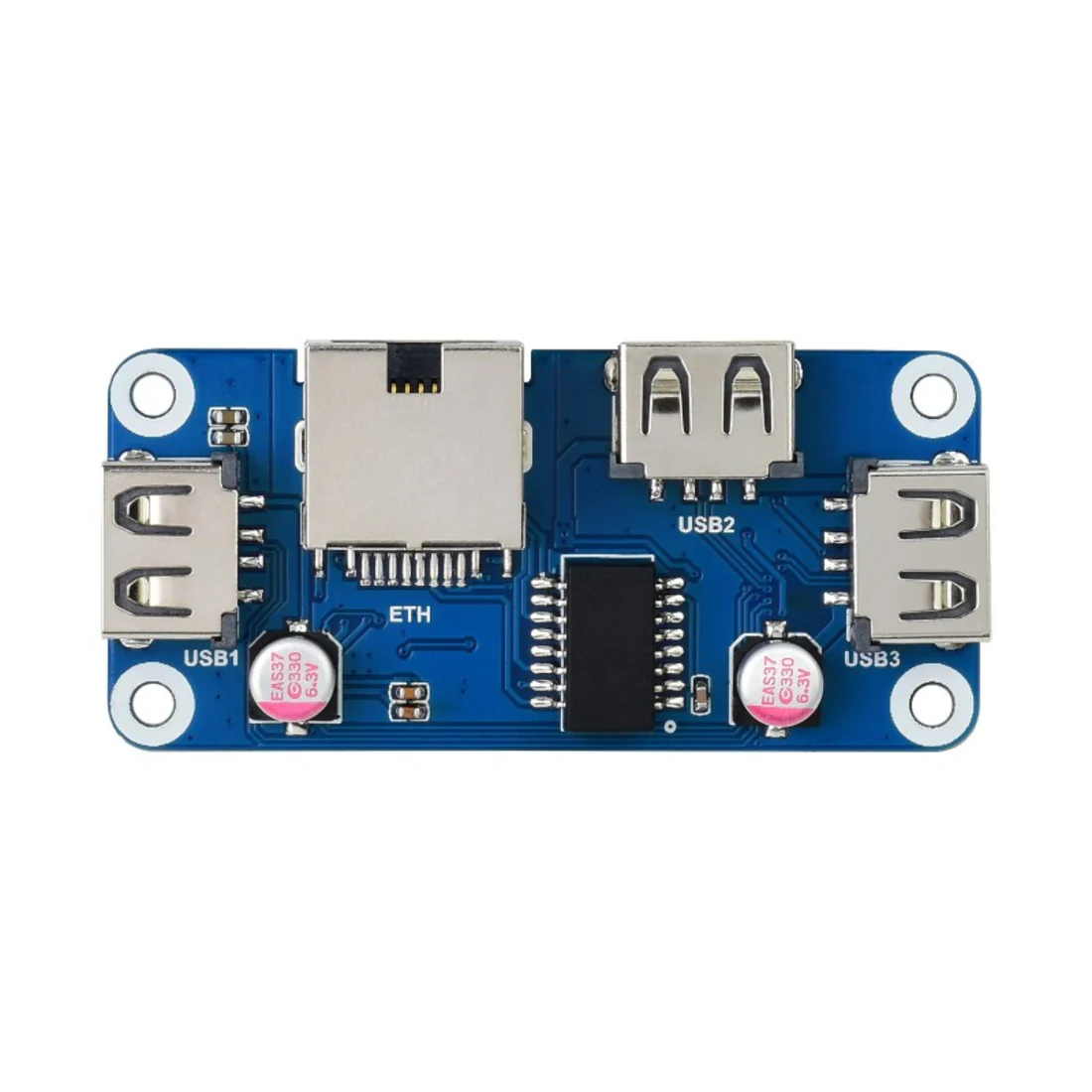

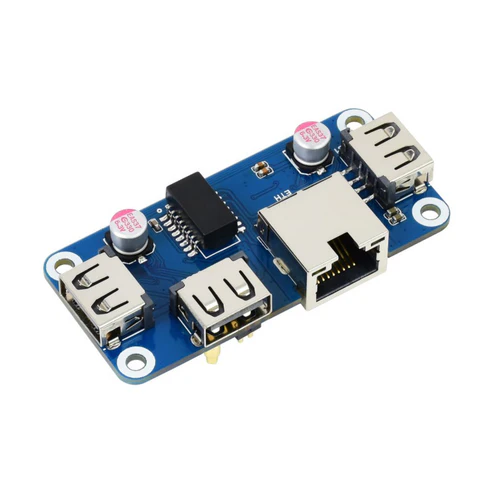

The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. Its pogo pin design is specialized for the Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.

Specifications:

• Operating Voltage: 5V
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

Feature:

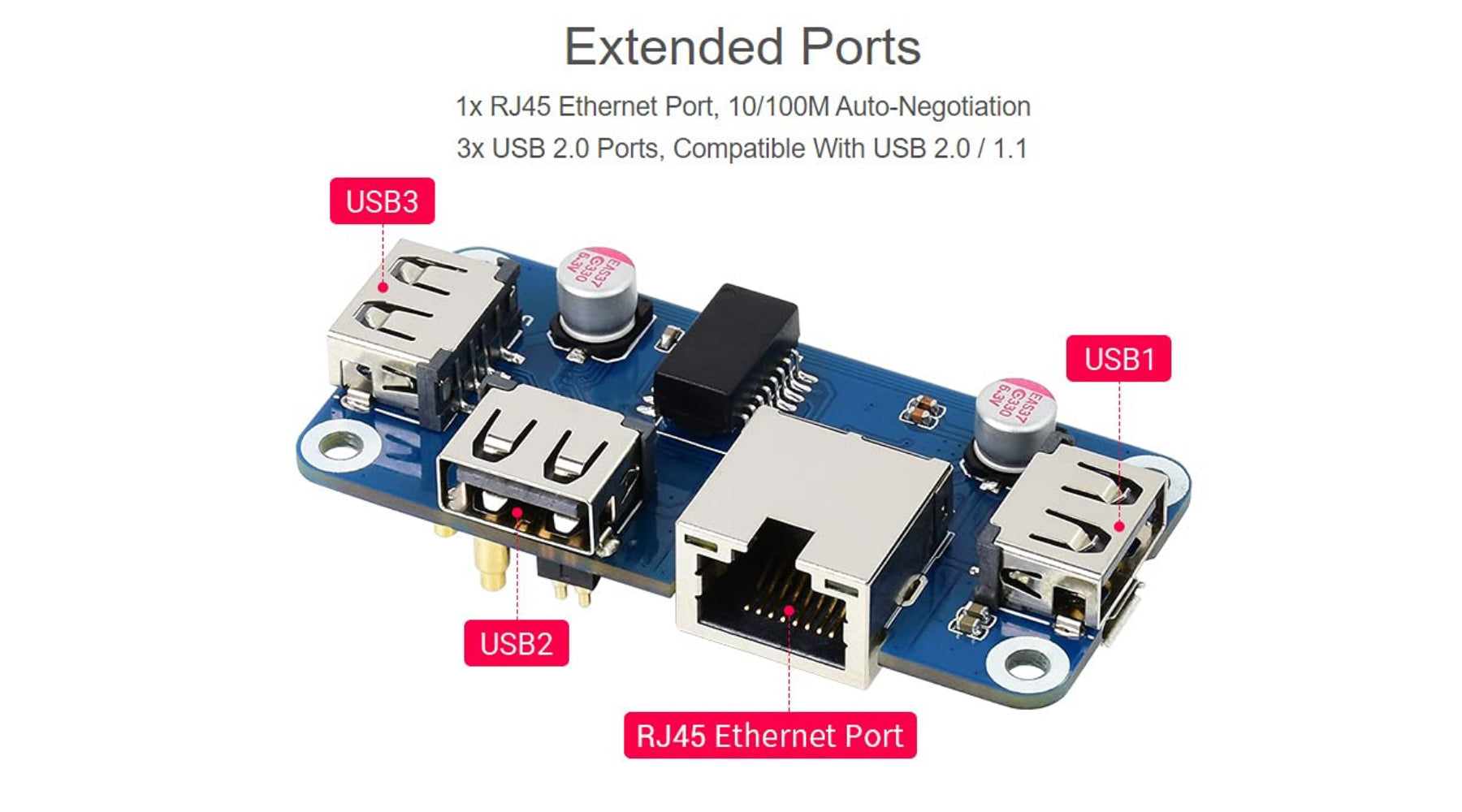

• 3x extended USB ports, compatible with USB 2.0 / 1.1
• Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation

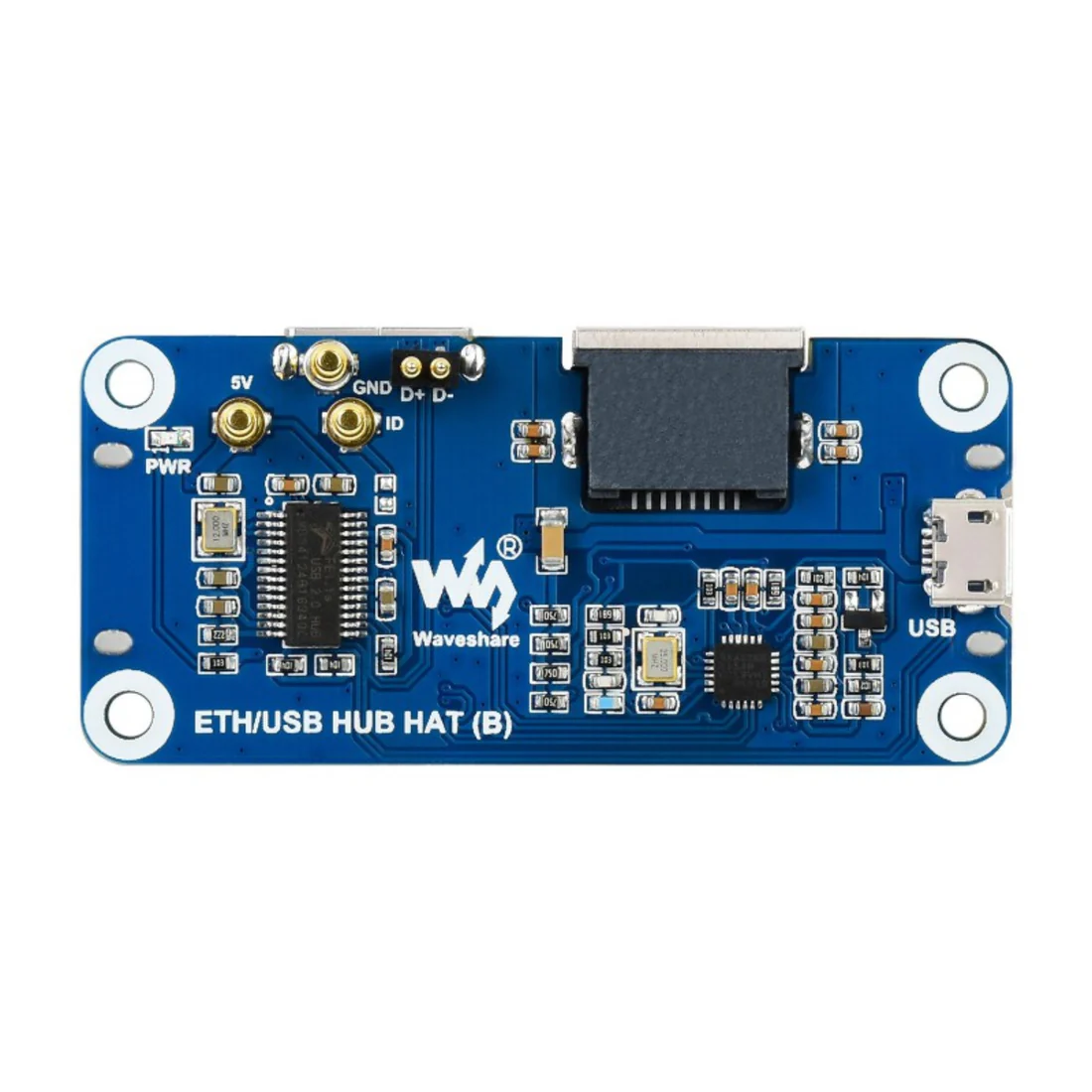

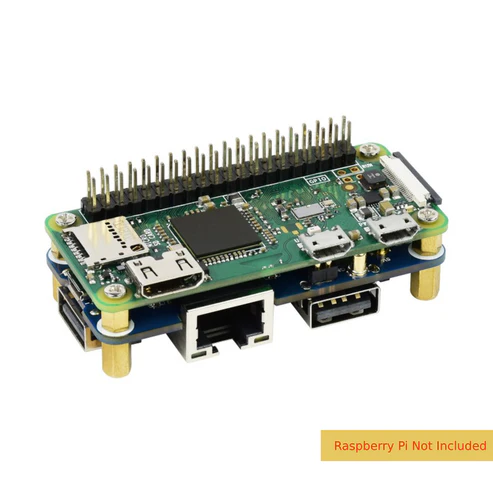

• Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero 2W/Zero W/Zero WH
• USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

Pin Description:

Package Included:

• 1 x ETH/USB HUB HAT (B)
• 1 x Screws Pack
