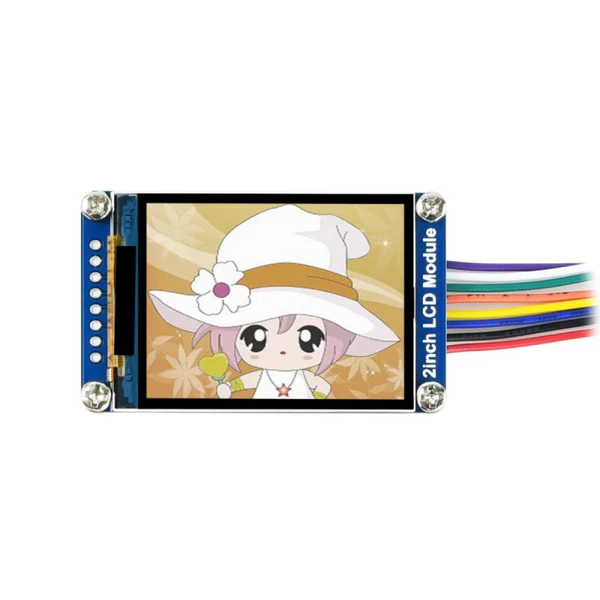

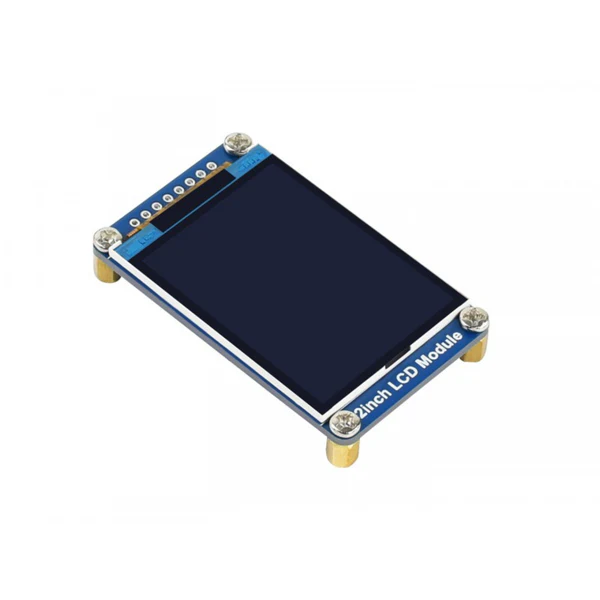

This is a Waveshare 2-inch LCD Display Module. A general LCD Module with an IPS screen, 2-inch diagonal, 240×320 resolution, embedded controller, communicating via SPI interface. 2-inch LCDÂ Module supports Raspberry Pi, Arduino, STM32, etc.
Specifications:
| Operating Voltage | 3.3V / 5V |
| Resolution | 240 × 320 pixels |
| Communication Interface | 4-wire SPI |
| Display Size | 30.60 × 40.80mm |
| Display Panel | IPS |
| Pixel Size | 0.0975 × 0.0975mm |
| Driver | ST7789VW |
| Module Size | 58.0 × 35.0mm |
Features:
- 240×320 resolution, 262K colors, clear and colorful displaying effect
- SPI interface minimizes required IO pins
- Comes with online development resources (examples for Raspberry Pi/VisionFive2/Arduino/STM32)

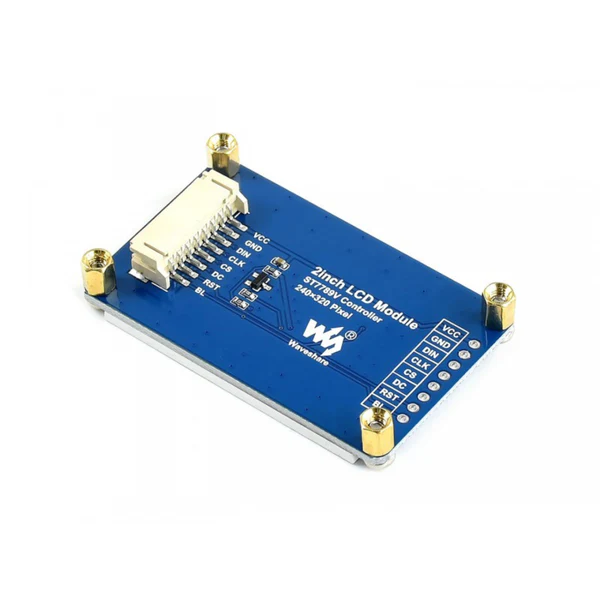

Pin Description:
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Useful Link:
Waveshare 2 Inch LCD Display Module
Package Included:

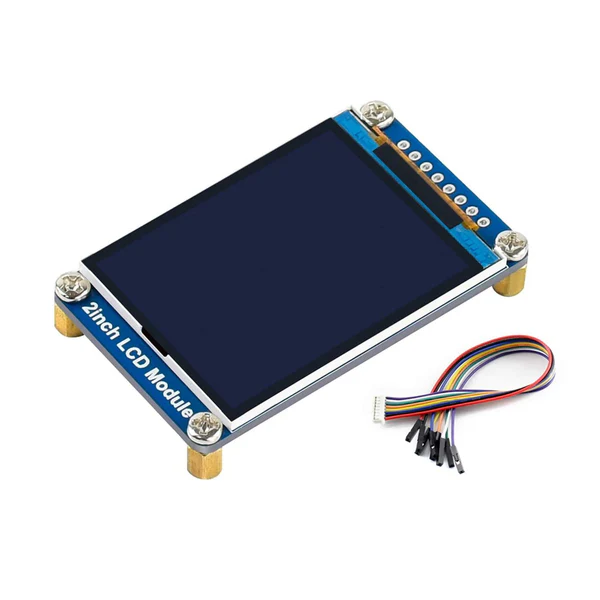

- 1 x 2inch LCD Module
- 1 x PH2.0 20cm 8Pin
