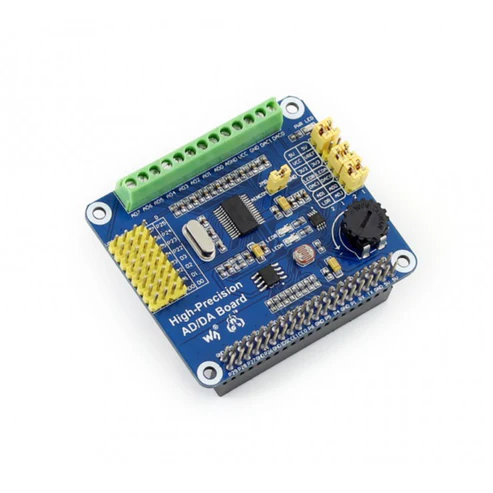

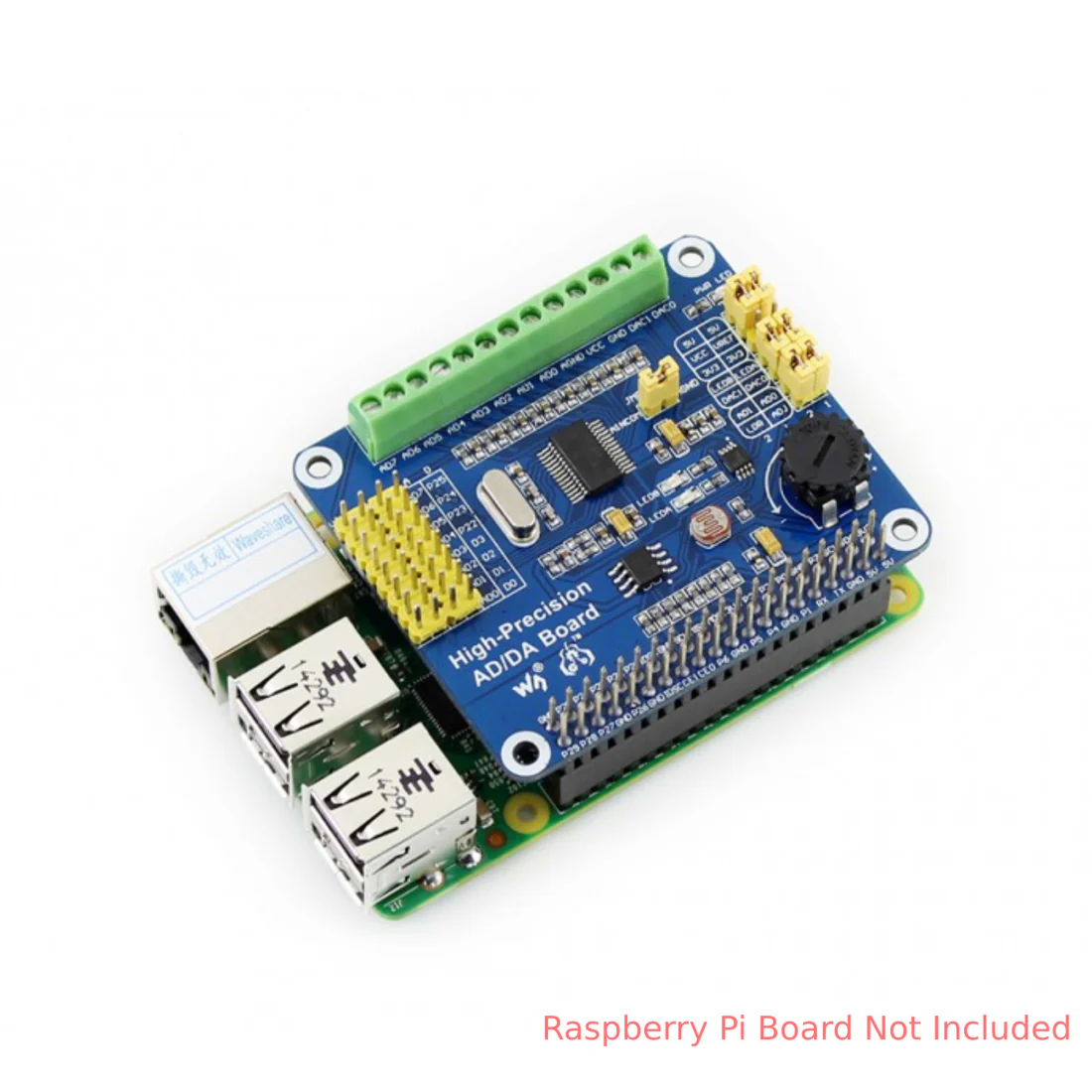

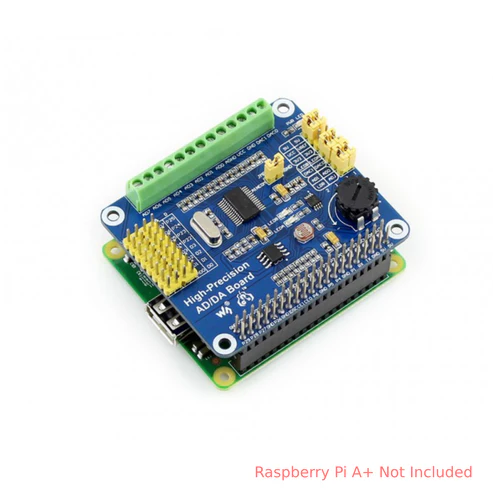

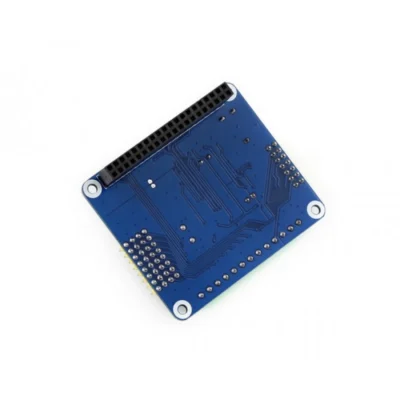

There’s no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won’t be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
- Onboard DAC8552, 2ch 16bit high-precision DAC
- Onboard input interface via pin-headers, for connecting analog signal
- Onboard input/output interface via screw terminals, for connecting analog/digital signal
- Features AD/DA detect circuit, easy for signal demonstration
 Interface Description:
- Raspberry Pi GPIO interface:Â for connecting with the Pi
- AD/DA input/output:Â screw terminals
- AD input:Â pin headers, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
- 7.68M crystal
- LM285-2.5:Â provides reference voltage for the ADC chip
- Photo resistor
- LED output indicator
- 10K potentiometer
- DAC8552 :Â 16bit high-precision DAC, 2ch
- Power indicator
- ADS1256 :Â 24bit high-precision ADC, 8ch (4ch differential input)
- ADC testing jumper
- DAC testing jumper
- Power selection jumper
- ADC reference ground configuration:Â when AD is single inputted, the AINCOM is the reference terminal, which can be connected to GND or external reference voltage
| Pin | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3V | Power supply (3.3V) |
| 2, 4 | 5V | Power supply (5V) |
| 3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40 | NC | NC |
| 6, 9, 14, 20, 25, 30, 34, 39 | GND | Ground |
| 11 | DRDY | ADS1256 data ready output, low active |
| 12 | RESET | ADS1256 reset input |
| 13 | PDWN | ADS1256 sync/power off input, low active |
| 15 | CS0 | ADS1256 chip select, low active |
| 16 | CS1 | DAC8552 chip select, low active |
| 19 | DIN | SPI data input |
| 21 | DOUT | SPI data output |
| 23 | SCK | SPI clock |
| 31, 33, 35, 37 | GPIO | extend to the sensor interface |
Useful Links:
Waveshare Raspberry Pi High Precision AD/DA Board
Package Included:
- 1 x High-Precision AD/DA Board
- 2 x RPi screws pack (2pcs)
