Description:
This is a Vibration Sensor Module. Using a highly sensitive point of view as a sensor switch SW-520D. The comparator output signal is clean, has good waveform, driving ability, and more than 15mA. The vibration Sensor Module output depends on the angle of the switch being turned on and off, when the angle switches off, the DO output high angle switch is turned on, and the DO output low. The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the angle change. The output of the module can directly drive relays, which can be composed of a high-power switching angle to protect electrical equipment and other products when dumped automatic power-off function.
Specifications:
- Model: SW520D
- Operating Voltage: 3.3 to 5V DC
- Type:Â Vibration Sensor
Features:
- Using high-sensitivity switch SW 520D as the sensor.
- The module is equipped with a fixed bolt-hole for convenient installation.
- Using LM393 wide voltage comparator, clean signal, good waveform.
- Strong driving ability with an output of more than 15 mA.
- The working voltage of 3.3V to 5V.
Package Included:

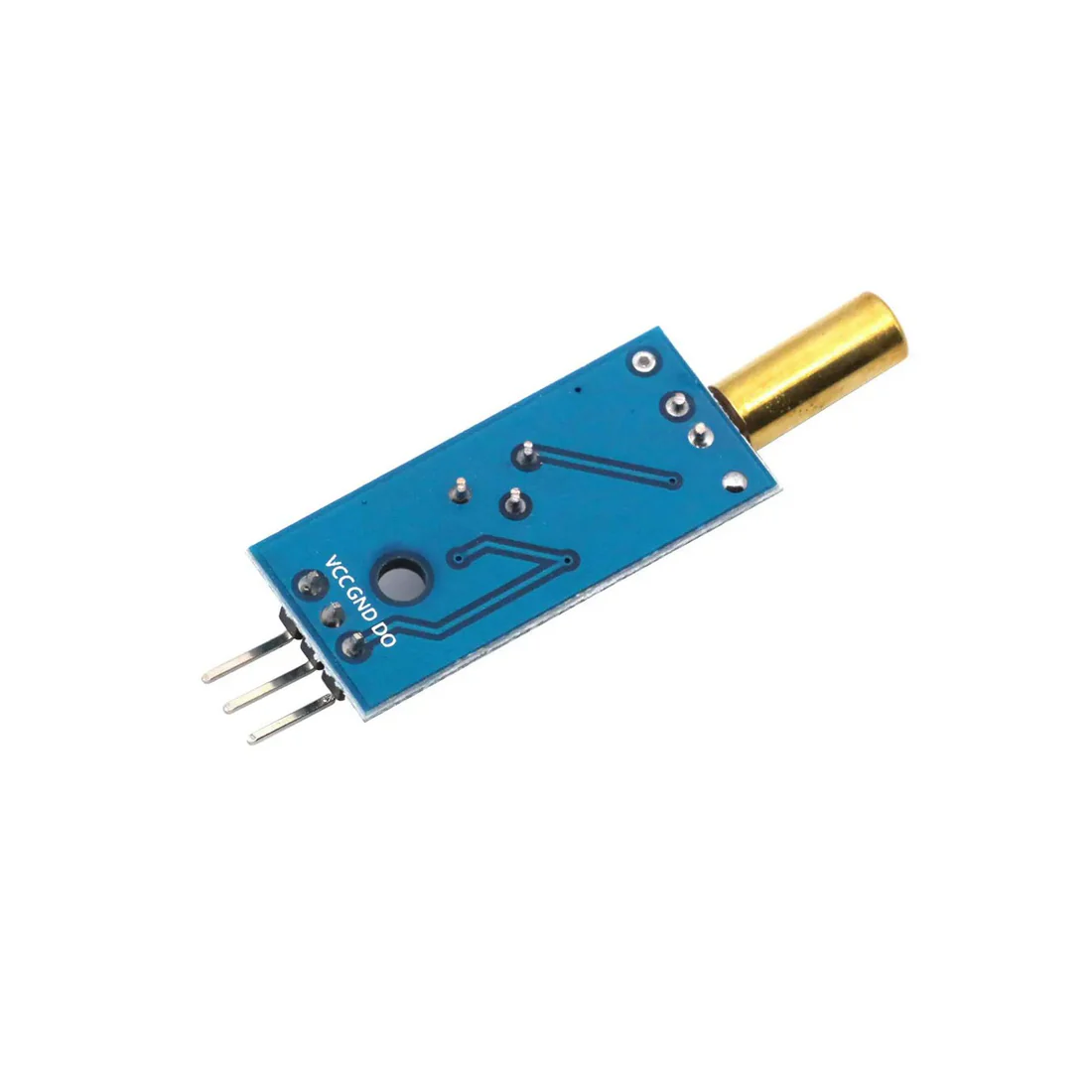

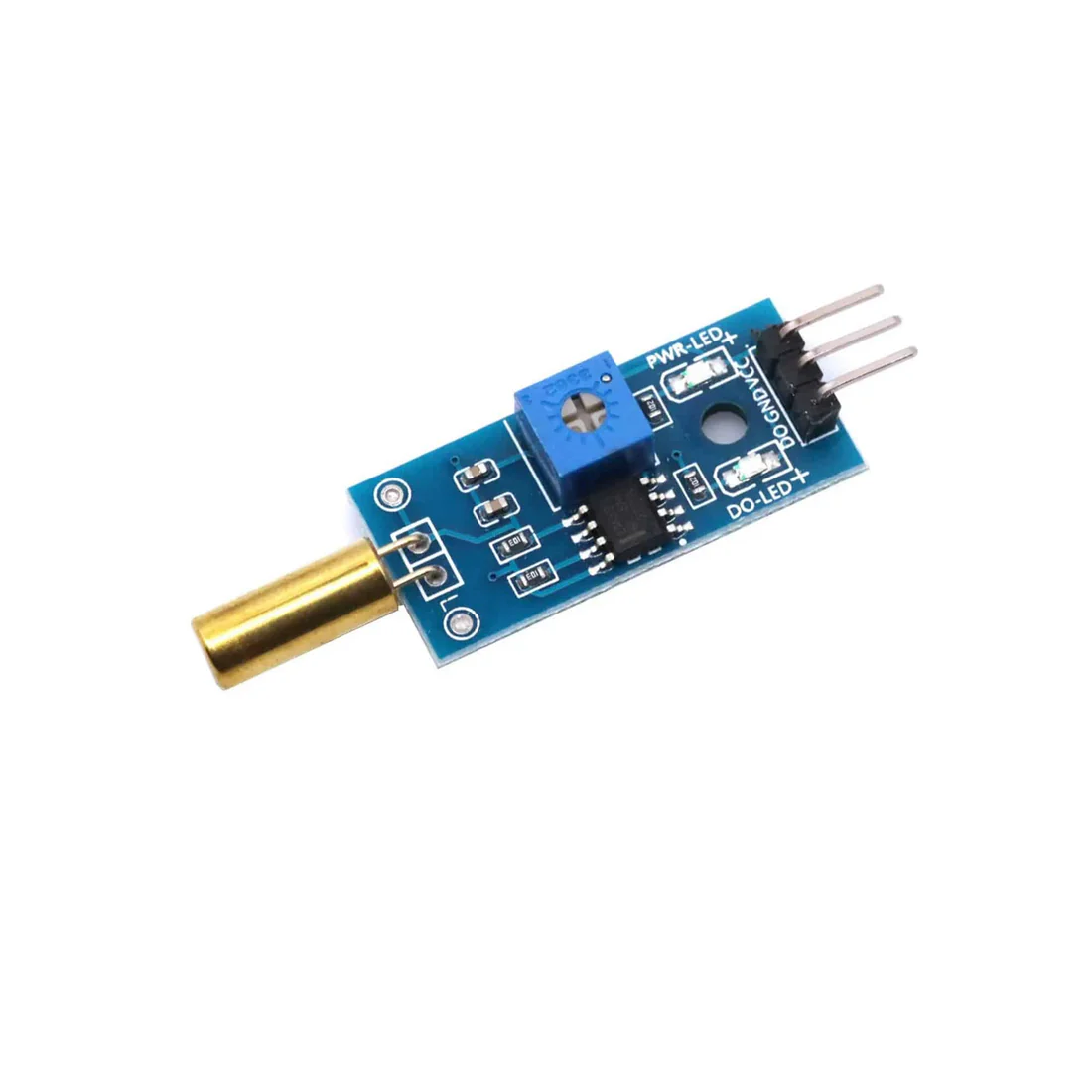

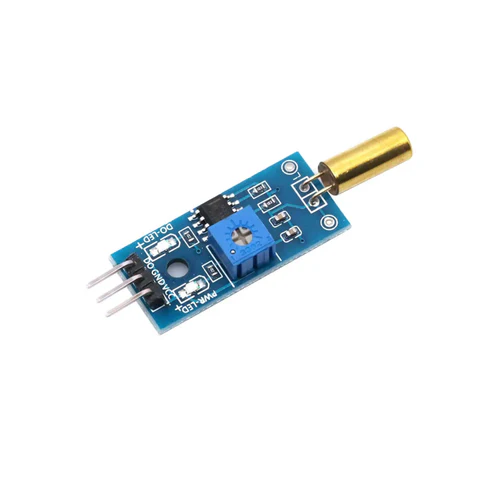

1 x Vibration Sensor Module 1 Channel SW-520D Tilt Vibration Sensor Module
