TF-LC02 Lidar Range Finder Ranging Sensor 3-3.6V Lidar Sensor With VCSEL Technology Raspberry Pi Lidar Range Finder Module For Distance Measurement and STM32 Projects

Description

Description:

The TF-LC02 LiDAR Ranging Module is a high-precision sensor featuring a built-in TDC (time-to-digital converter) for accurate distance measurement. Ideal for use in robots, drones, sweepers, and smart home devices, it offers a measuring range of 3cm to 200cm with a detection speed of 33ms.

The TF-LC02 Lidar Range Finder Ranging Sensor provides exceptional accuracy (±2cm at 3cm-100cm, ±5% at 100cm-200cm) and supports easy installation and operation via UART communication. Best suited for indoor use, it delivers reliable performance in low ambient light conditions, with strong outdoor lighting potentially affecting its accuracy.

Specifications:

• Model: TF-LC02
• Measuring Current Range: 3cm~200cm at 90% reflectivity
• Detection Speed: 33msec
• Accuracy: ±2cm at (3cm-100cm); ±5% at (100-200cm)
• Storage Temperature (°C): -20-85°C
• Operating Temperature (°C): -20-70°C

Features:

• TF-LCO2 is a LiDAR ranging module including a high-precision ToF sensor, it has a TDC (Time-to-digital converter) circuit inside.
• TF-LCO2 can be used for ranging of various electronic devices such as sweepers, robots, drones, and smart home products.
• Easy to operate and install, supports UART communication.

Package Included:

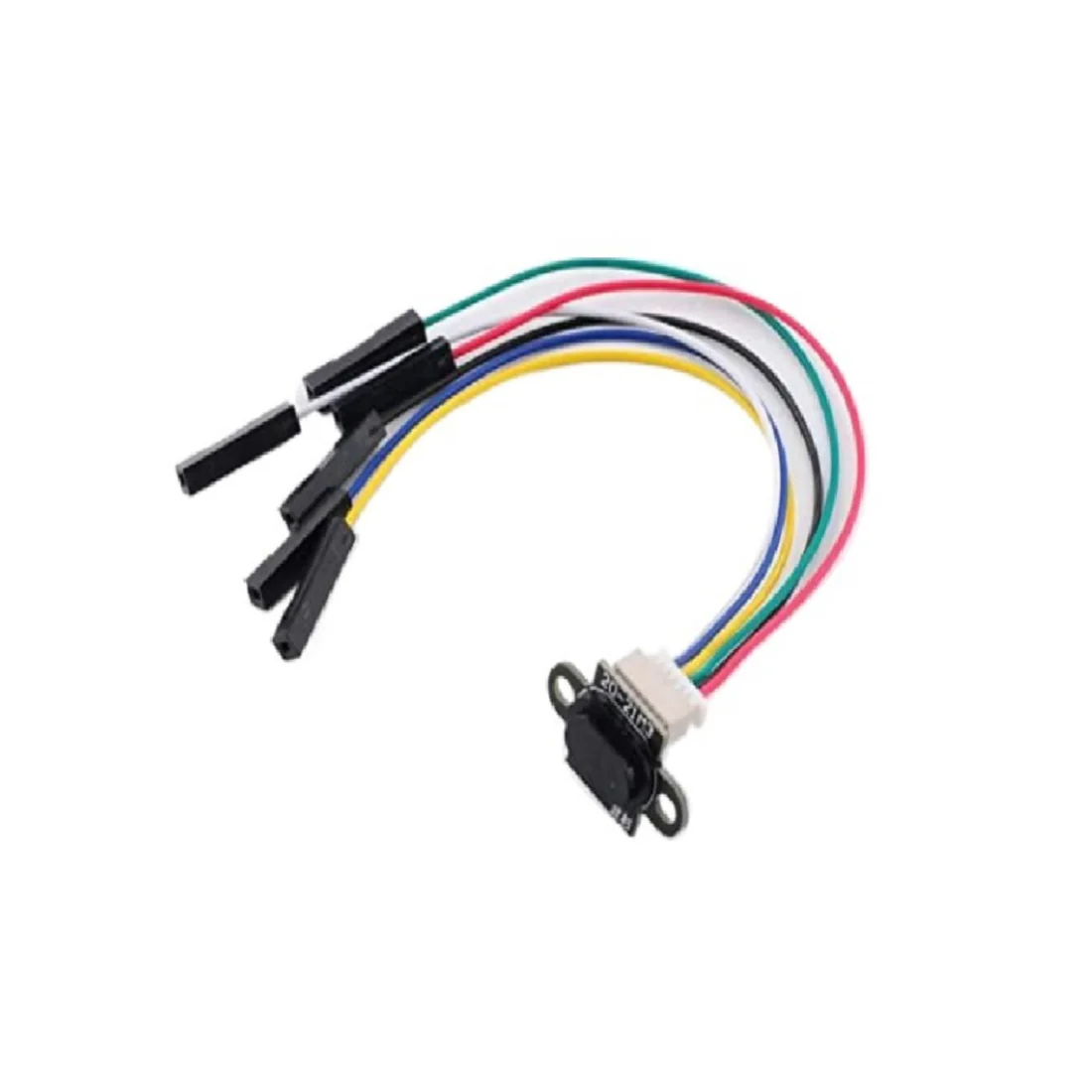

1 x TF-LC02 Lidar Range Finder Ranging Sensor 3-3.6V Lidar Sensor With VCSEL Technology Raspberry Pi Lidar Range Finder Module For Distance Measurement and STM32 Projects
