Description:

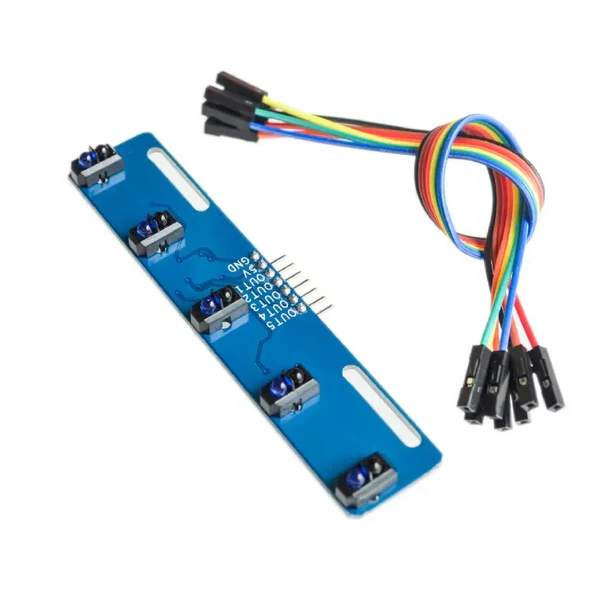

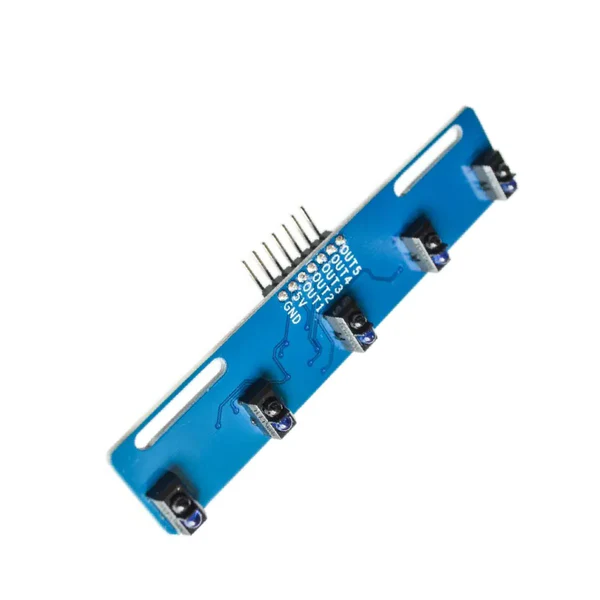

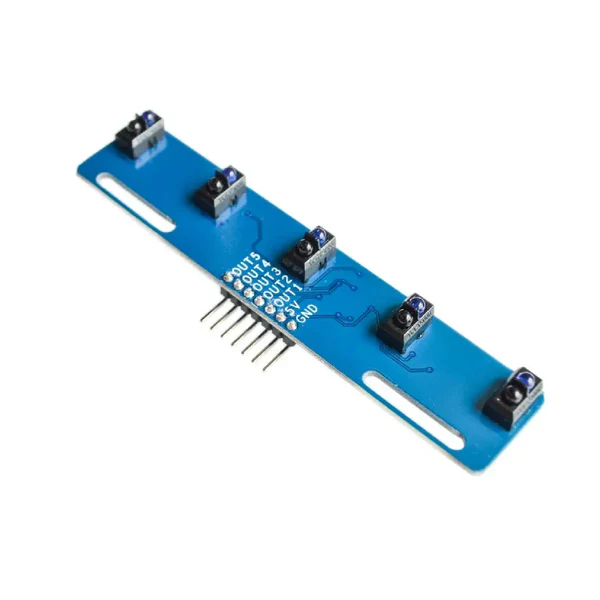

The TCRT5000L 5-Channel Tracking Sensor Module is ideal for line following robots and smart cars. Using five TCRT5000 infrared reflection sensors, it detects lines and objects by emitting and receiving infrared light.
The module outputs analog values, allowing for precise line tracking based on object distance and color.
Specification:

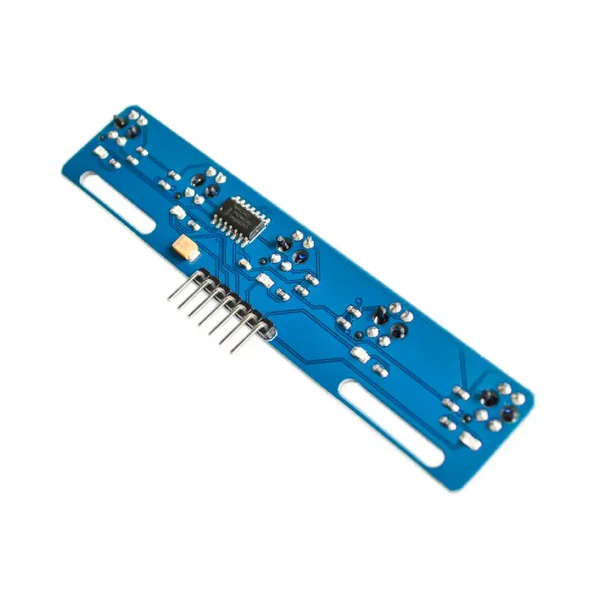

- Chip:Â 74HC14D
- Operating Voltage:Â 3.3 ~ 5V DC
- Sensor:Â TCRT5000
- No. of Channel:Â 5
Features:
- High-quality 5-channel IR line tracking sensor.
- 15mm spacing between sensors for optimal resolution.
- Ideal for fast line following and grid navigation robots.
- Easy-to-use digital outputs and mounting holes (3mm).
- Onboard status LEDs for each sensor
Connection:
- VCC: VCC is the power input port, which could access 3.3V ~ 5V voltage
- OUT1 ~ 5: OUT is the signal output port, MCU link I / O port
- GND:Â GND is the negative input of the power supply
Package Included:
1 x TCRT5000L 5-Channel Infrared Line Tracking Sensor Module
