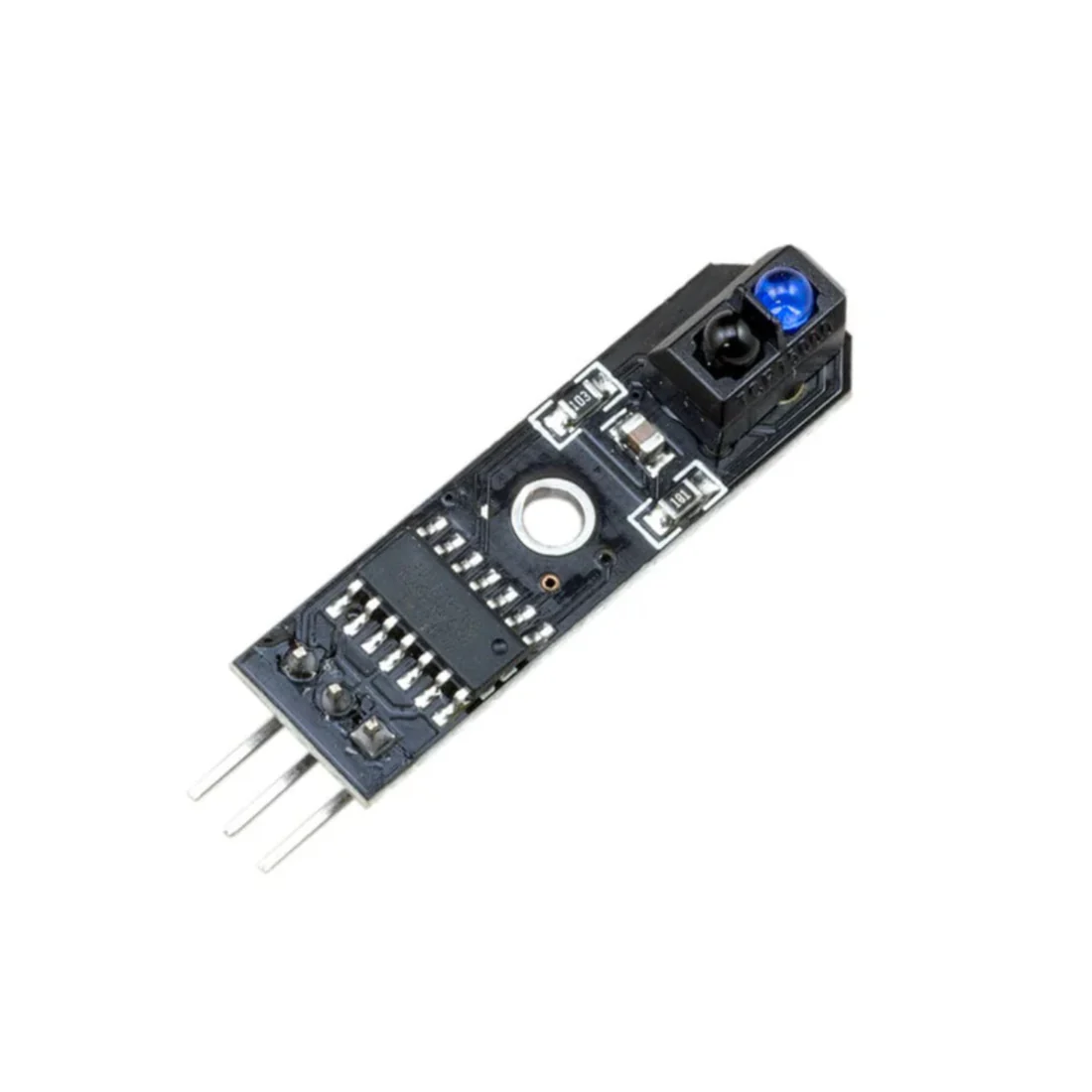

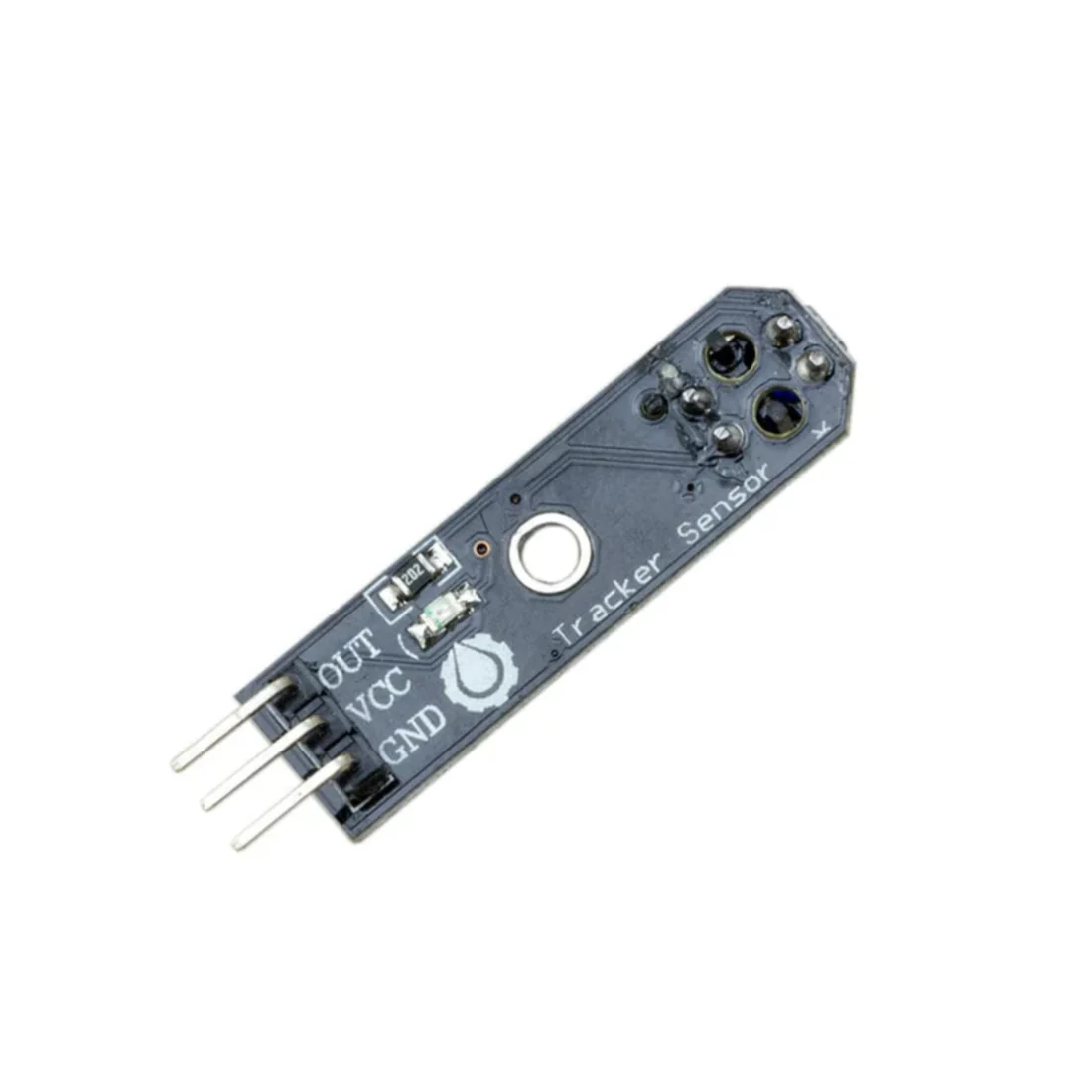

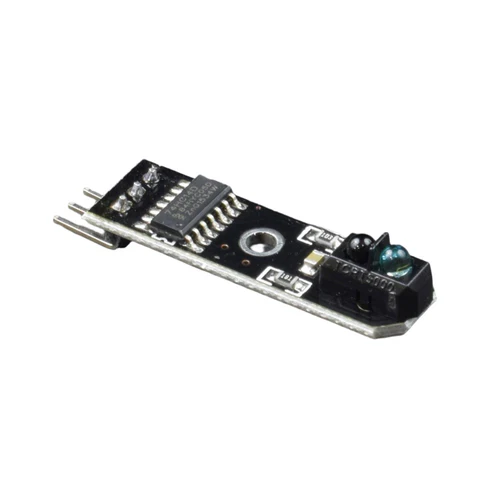

TCRT5000 IR Track Sensor Module High-Sensitivity IR Line Follower Module For Robot Toy Car, Arduino

Description

Description:

TCRT5000 sensors constantly emit infrared emitting diodes, infrared rays are emitted when reflected or not reflected but the intensity is not big enough, the infrared receiver has been in the off state, then the output of the module is low, indicating the diode remains off state; when the object appeared to be measured in the measuring range, the infrared rays are reflected back and of sufficient intensity, infrared receiver tube saturation, the output side module is high, indicator LED is lit.

Features:

• TCRT5000 infrared reflective sensor
• Measure the reflected distance: 1mm ~ 25mm Applicable
• The working voltage: 5V
• The output format: digital signal (0 and 1)
• A fixed bolt hole for easy installation
• Small PCB board size: 3.5cm x 1cm
• Application: meter pulse data sampling, fax machines paper shredders measure, obstacle measure, black and white line measure

Wiring:

• VCC: positive power supply (5V)
• GND: power supply is negative
• OUT: high/low switch signal (digital signal 0 and 1)

Package Included:

1 x TCRT5000 IR Track Sensor Module High-Sensitivity IR Line Follower Module For Robot Toy Car, Arduino
