Description:

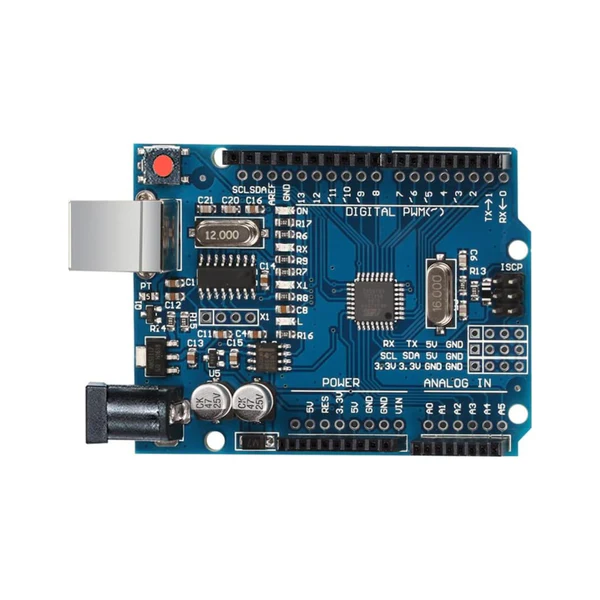

The SMD UNO R3 Development Board is a compelling and budget-conscious counterpart to the widely recognized Uno R3 Arduino. This board offers a practical pathway to electronic prototyping, providing the essential functionalities of its more renowned sibling while adopting a strategic cost-saving design.
Step into the vibrant realm of electronic creation with the sleek and efficient SMD Arduino UNO R3 Development Board with Cable. This compact powerhouse, measuring a mere 7 x 5 x 1cm, presents itself as an ideal gateway for both the budding enthusiast and the seasoned engineer, offering a blend of reliability and portability.
Specifications:
- Microcontroller Chip: ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V DC
- Input Voltage: 7-12V
- Input Voltage (Limit): 6-20V
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- DC Current for 3.3V Pin: 50mA
- DC Current per I/O Pin: 40mA
- Clock Speed: 16MHz
- SRAM: 2KB
- EEPROM: 1KB (ATmega328)
- Flash Memory: 32KB
- Power Supply Option: DC Jack or USB
- On Board LEDs: On/Off, L (PIN 13), TX, RX
- Operating Temperature: -40 to 90°C
Features:
- Engineered for exceptional quality and durability.
- ATmega328, 14 digital I/O, 6 analogue inputs, 16MHz oscillator, and more.
- Unleash your innovation with a versatile prototyping platform.
- Seamlessly integrates with Arduino software and hardware.
- Senses, controls lights, motors, and other actuators.
- USB or 6-20V external supply for varied project needs.
Package Included:

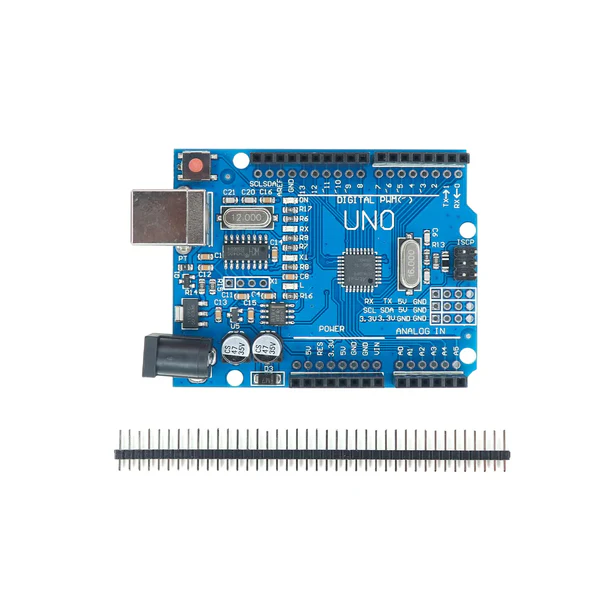

1 x SMD UNO R3 Arduino Compatible
