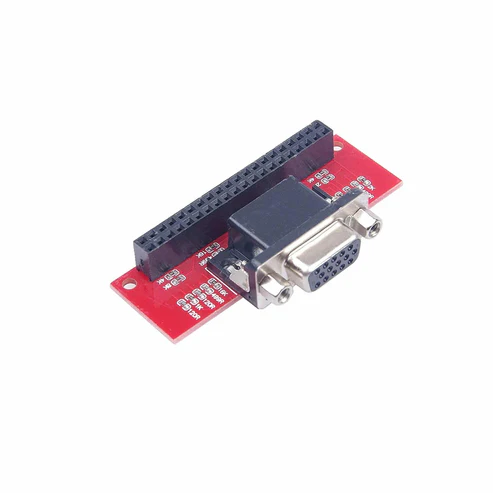

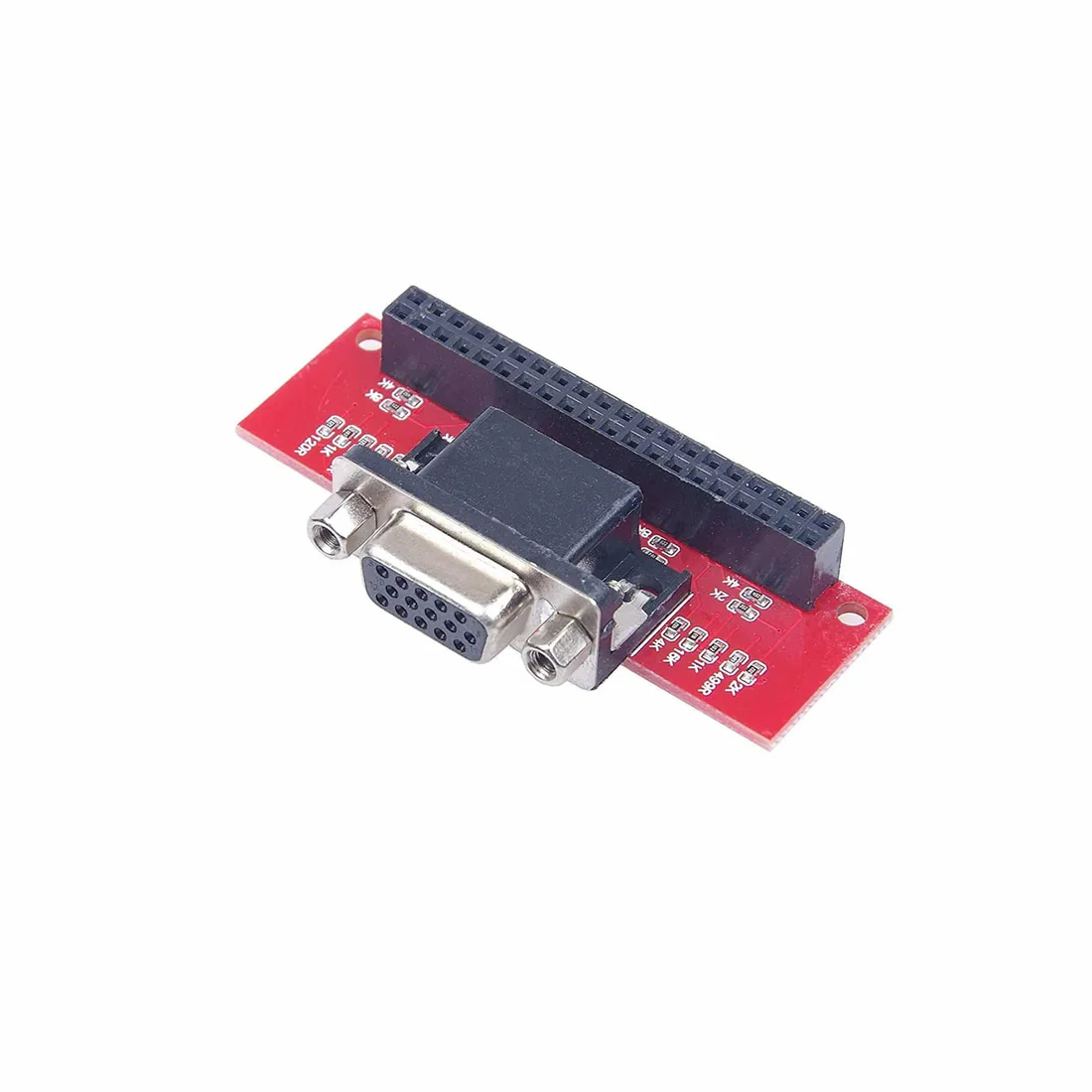

Raspberry Pi VGA666 Adapter Board VGA666 RPI Dtoverlays Module Raspberry Pi VGA 666 VGA666 Adapter Board Raspberry Pi 3 Model B/Pi 2/ B+/A+ – VGA Adapter for Raspberry pi

Description

Description:

This Raspberry Pi VGA666 Adapter Board has another name: Gert -VGA adapter, or Passive VGA adapter 666 for Raspberry Pi A+/B+/2B/3B/Zero. The Raspberry Pi has an HDMI port to connect a display. If your monitor only has VGA, you have to use a Raspberry Pi VGA666 Adapter Board. Because this requires a digital-to-analogue conversion, those adapters can be quite pricey, and they can draw lots of power. As well as just allowing you to connect a VGA monitor natively. And unlike composite video, the DPI interface can be run independently of the HDMI. The software for dual screens is still under development. Running two screens at maximum resolution will depend on the speed of GPIO. This wasn’t possible on the Model A or B. And there’s a catch: as the board uses most of your GPIO pins, you lose access to them.

Specifications:

• Model: VGA666
• Video Resolution: 800×600
• FPS: 30FPS
• Maximum Colours: 262144

Features:

• Raspberry Pi VGA666 Adapter Board support for Raspberry Pi 3B / 2B / B+ / A+
• With 6 bits per channel, you have a maximum of 262144 colours.
• Raspberry Pi VGA666 Adapter Board is easy to set up and configure.

Package Included:

1 x Raspberry Pi VGA666 Adapter Board VGA666 RPI Dtoverlays Module Raspberry Pi VGA 666 VGA666 Adapter Board Raspberry Pi 3 Model B/Pi 2/ B+/A+ – VGA Adapter for Raspberry pi
