Pixhawk PX4 Autopilot PIX2.4.8 Flight Controller Pixhawk 32-Bit Processor PX4 Autopilot Controller High Performance Autopilot For Drones and UAVs

Description

Description:

Pixhawk PX4 2.4.8 32-bit Flight Controller is a full autopilot capable of autonomous stabilization, way-point-based navigation and support for two-way telemetry with radio telemetry modules.

This Pixhawk 2.4.8 Flight Controller allows the user to turn any fixed wing, rotary wing, or multirotor vehicle (even boats and cars) into a fully autonomous vehicle, capable of performing a wide range of tasks even programmed GPS missions with waypoints with the optional GPS Module.

PX4 Flight Controller Supports 8 RC channels with 4 serial ports.Various user interfaces are available for programming, reviewing logs, and even some Apps for smartphones and tablets. The optional telemetry radio allows for two-way radio communication giving you full control and providing live data back to your computer or tablet.

Specifications:

• Type: Flight Controller
• Model: PIX 2.4.8 32 Bit
• Input Voltage: 7V
• Processor: 32 Bit Cortex M4 Core
• Bus interface (UART, I2C, SPI, CAN).
• Firmware: Mission planner.
• Sensors: Gyrometer, Accelerometer, Barometer Magnetometer.

Processor:

• 32-bit STM32F427 Cortex M4 core with FPU.
• 32-bit STM32F103 failsafe co-processor.
• 168 MHz.
• 128 KB RAM.
• 2 MB Flash.

Sensor

• ST Micro L3GD20H 16 bit gyroscope.
• ST Micro X4HBA 303H 14-bit accelerometer/magnetometer.
• Invensense MPU 6000 3-axis accelerometer/gyroscope.
• MEAS MS5607 barometer.

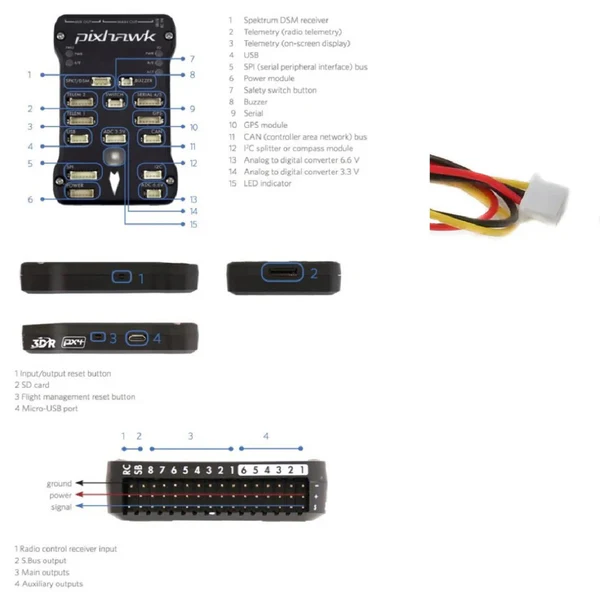

Interface:

• 5x UART (serial ports), one high-power capable, 2x with HW flow control.
• 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
• Internal micro USB port and external micro USB port extension.
• Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
• Futaba S.BUS® compatible input and output.
• PPM sum signal input.
• RSSI (PWM or voltage) input.
• I2C.
• SPI.
• 3.3 and 6.6V ADC inputs.

Features:

• The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
• The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe.
• Bus interface (UART, I2C, SPI, CAN).
• Provide redundant power input and failover.
• Provide automatic and manual modes.
• Provide a multi-tone buzzer Interface.
• Micro SD card to record flight data.
• 14 PWM / servo output.

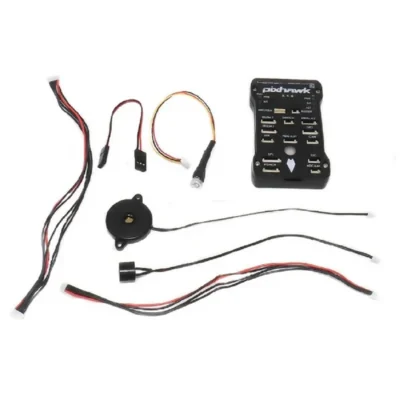

Package Included:
