Description:
The PH Sensor Module stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. This is used in Water quality testing and Aquaculture. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.

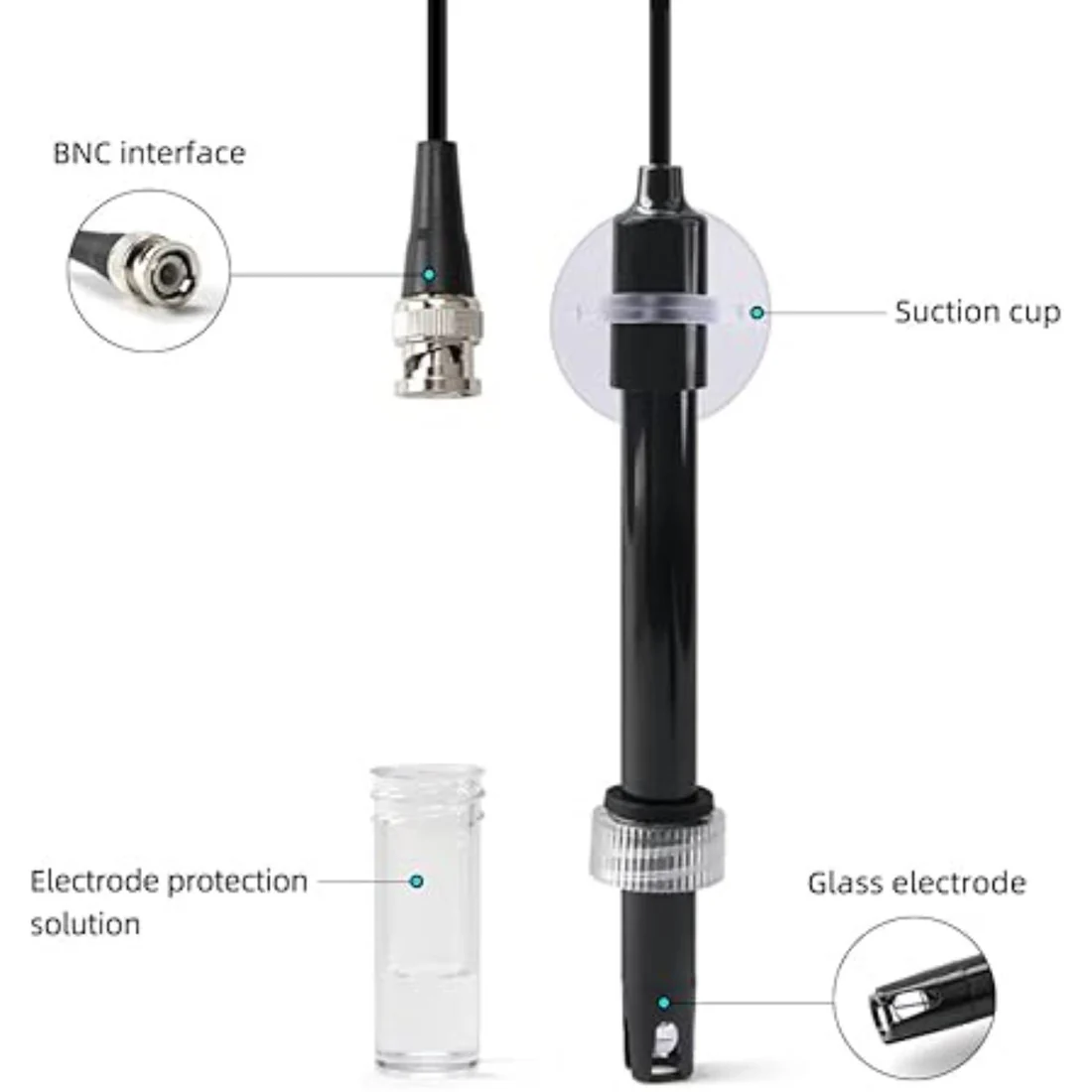

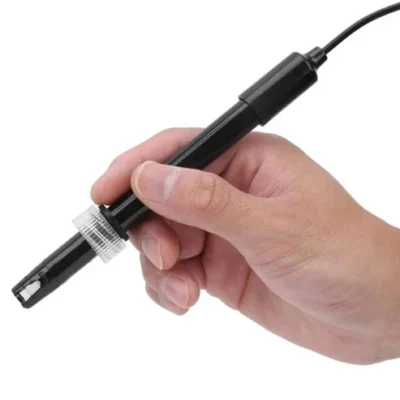

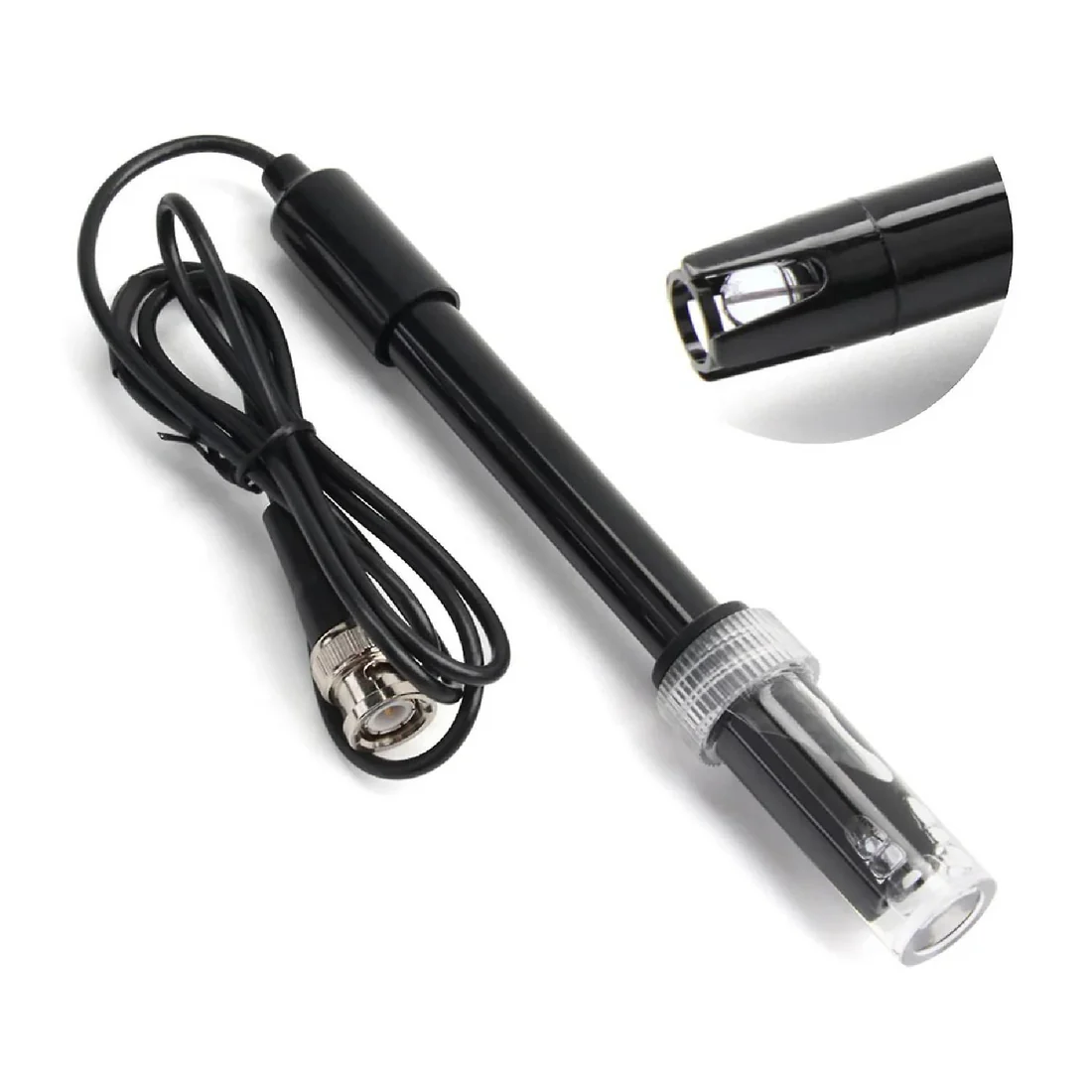

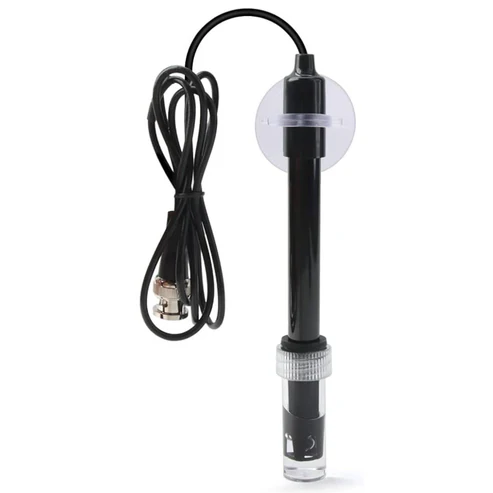

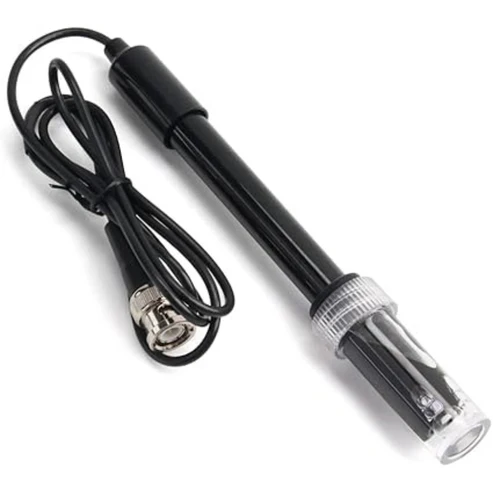

PH Sensor High-Accuracy electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device that has a BNC input terminal. The pH electrode probe is accurate and reliable and can give almost instantaneous readings.
PH sensor module is specially designed for Arduino controllers and has a built-in simple, convenient, and practical connection and features. It has an LED that works as the Power Indicator, a BNC connector, and a PH2.0 sensor interface. To use it, just connect the pH sensor with a BND connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily.
Specifications:
- PH Range: 0-14 PH
- Temperature Range: 0-60℃
- Zero-Point: 7 ± 0.5PH
- Alkali Error: 0.2PH
- Theoretical Percentage Slope: ≧98.5%
- Internal Resistance: ≦250MΩ
- Response Time: ≦1min
Features:

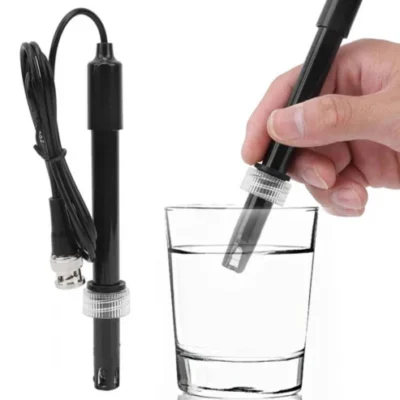

- PH sensor probe for water testing Features a high accuracy range of 0-14, this pH electrode probe delivers reliable and exact readings for both acidic and alkaline solutions, ideal for accurate testing in various environments.
- The lightweight and compact design ensures easy handling and portability, allowing for straightforward installation and convenient use in diverse testing scenarios.
- Â This PH Electrode Probe BNC compatible is built to withstand regular use and harsh conditions, providing a reliable tool for your testing needs.
Package Included:
1 x PH Sensor Only ProbeÂ
