Description
Specifications:
- Step Angle:Â 1.8 degree
- Holding Torque (Kg-Cm): 10.1
- Supply Current (A): 2.8 A/Phase
- No. of Leads: 4
- Inductance (mH/Phase): 2.2
- Resistance: 0.83 ohms
- Rotor Inertia (gm-cm2): 275
- Detent Torque (kg-cm): 0.36
- Inductance Accuracy: ±20%
- Resistance Accuracy: ±10%
- Shaft Diameter (mm): 6.35
- Shaft Length (mm): 20.6
- Step Angle Accuracy: ±5%
- Shaft Type: Round
Package Included:

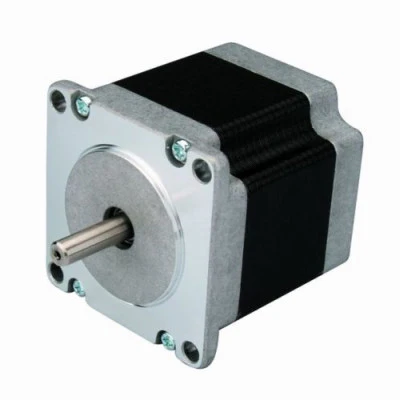

1 x NEMA23 10.1 kg-cm Hybrid Stepper Motor
