Description:

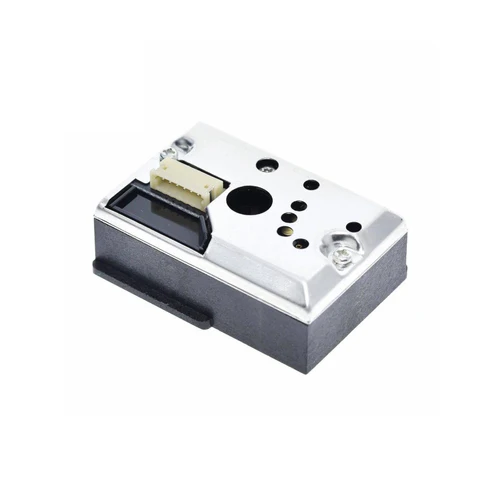

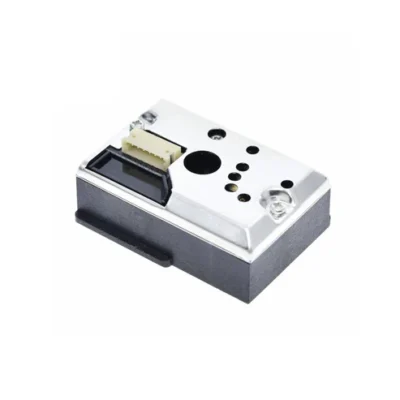

GP2Y1010AU0F is an optical air quality sensor, designed to sense dust particles. An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke and is commonly used in air purifier systems.
The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analogue voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.
Specifications:
- Power Supply Voltage: DC5 ± 2V
- Operating Current: 20mA (peak)
- Sensitivity: 0.5V / (0.1mg / m3)
- Minimum Detection Level of Particles: 0.8 m
- Clean Air Voltage: 0.9V type
- Working Temperature: -10 ~ 65°C
- Storage Temperature: -20 ~ 80°C
Features:
- Accurate dust detection: The GP2Y1010AU0F is a precise optical air quality sensor capable of detecting dust particles with a minimum size of 0.5 µm. This ensures that even the smallest dust particles do not go unnoticed.
- Wide range of dust density: This sensor can measure dust densities up to 580 µg/m³, which is ideal for monitoring air quality in various environments and applications.
- Versatile applications: This module is versatile and suitable for various applications, from automation, home automation and robotics to environmental and industrial monitoring.
- STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger several processes such as problem-solving, investigative and creative thinking.
Package Included:

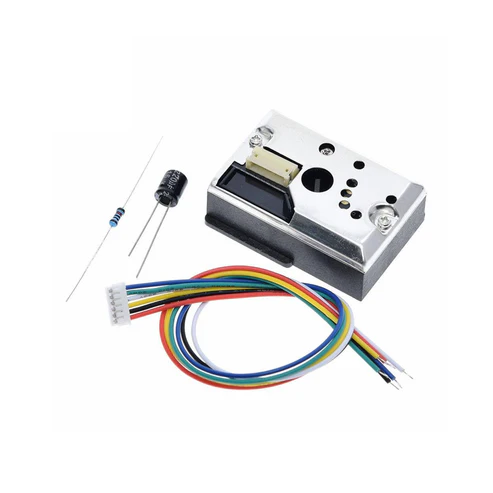

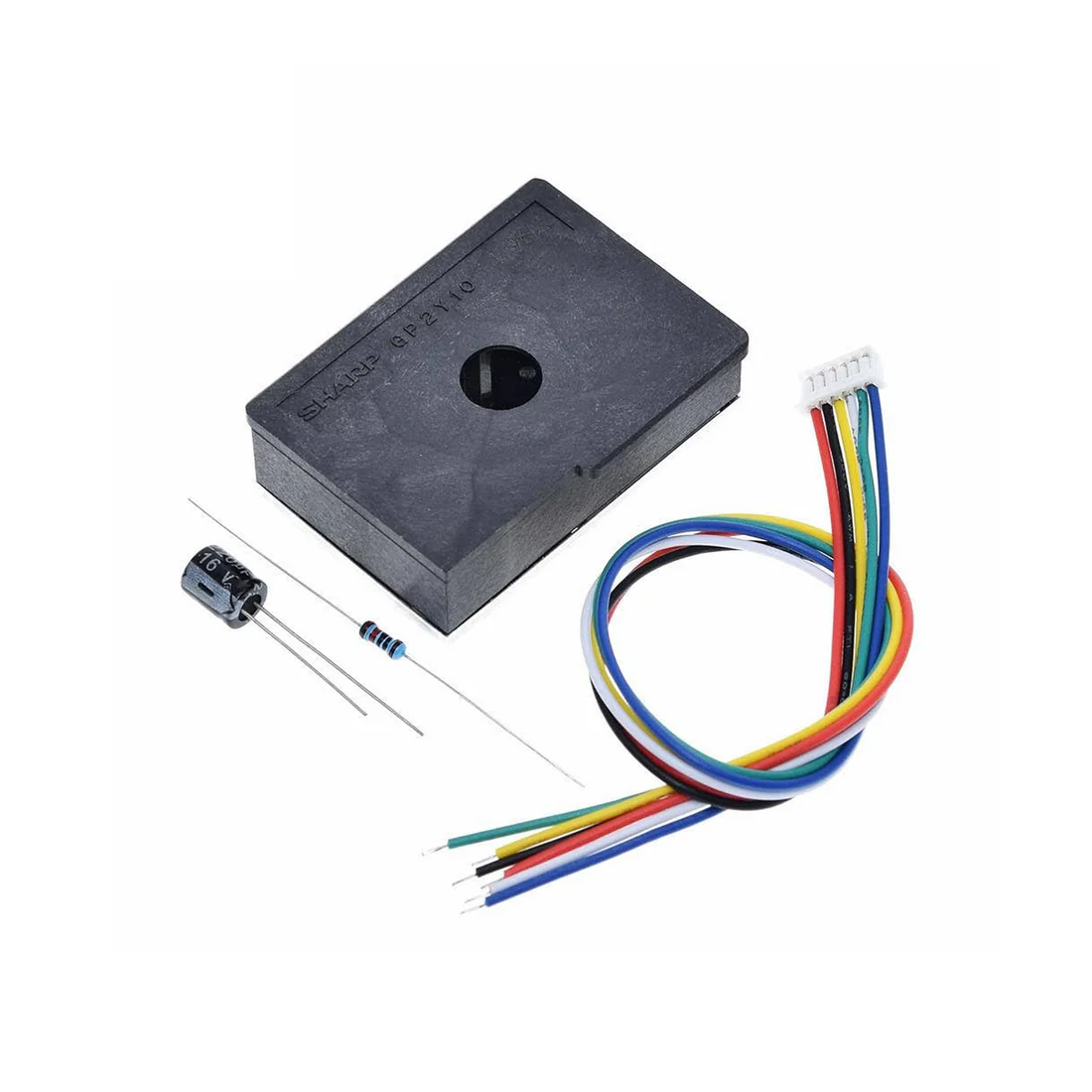

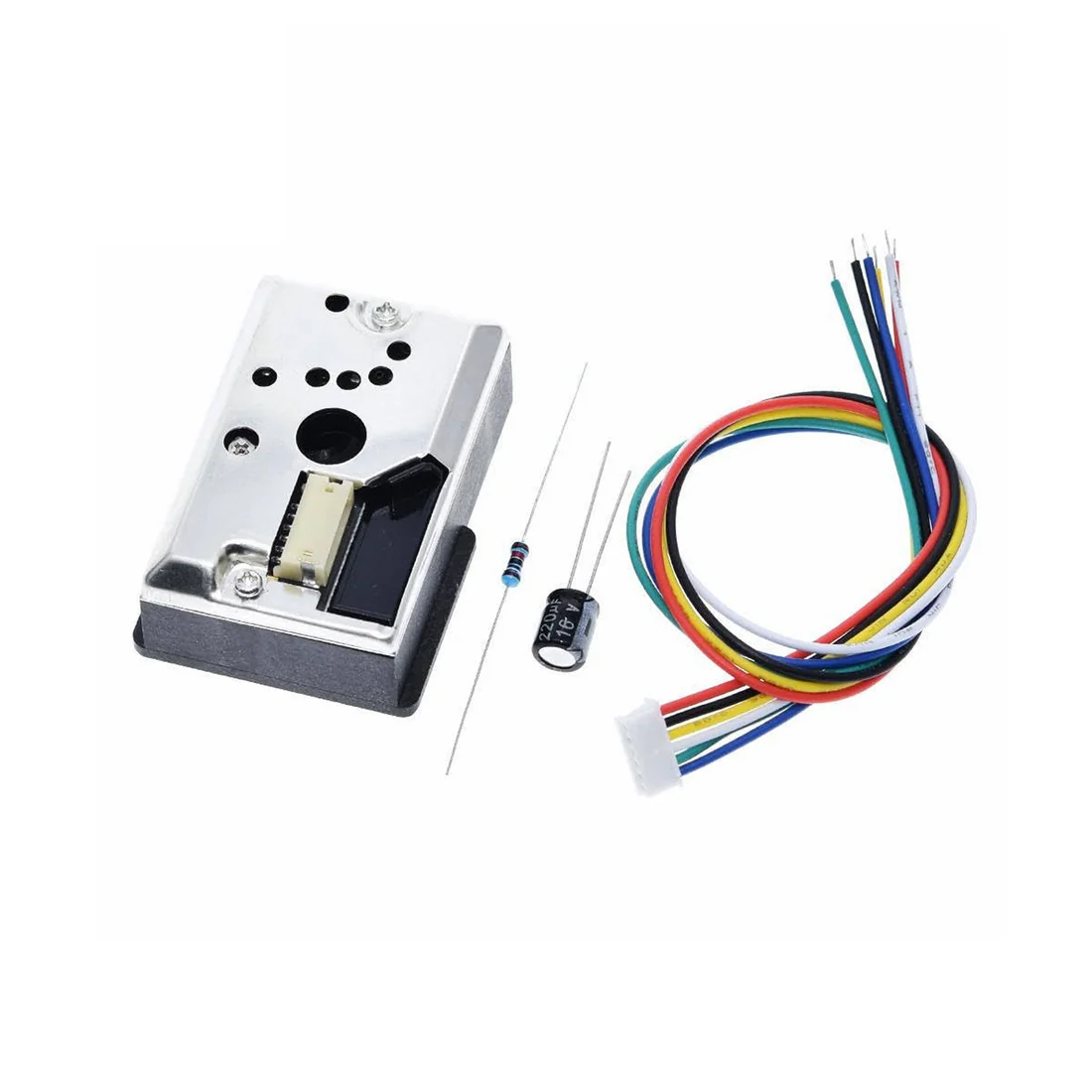

1 x GP2Y1010AU0F Optical Dust Sensor Module PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor /w Cable Capacitor Resistor
