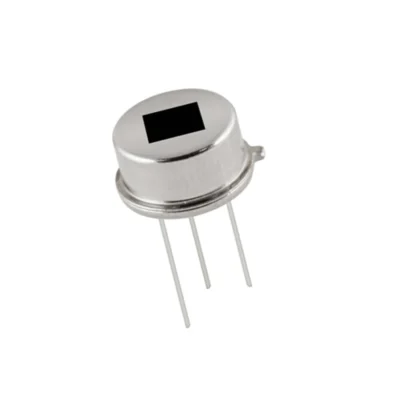

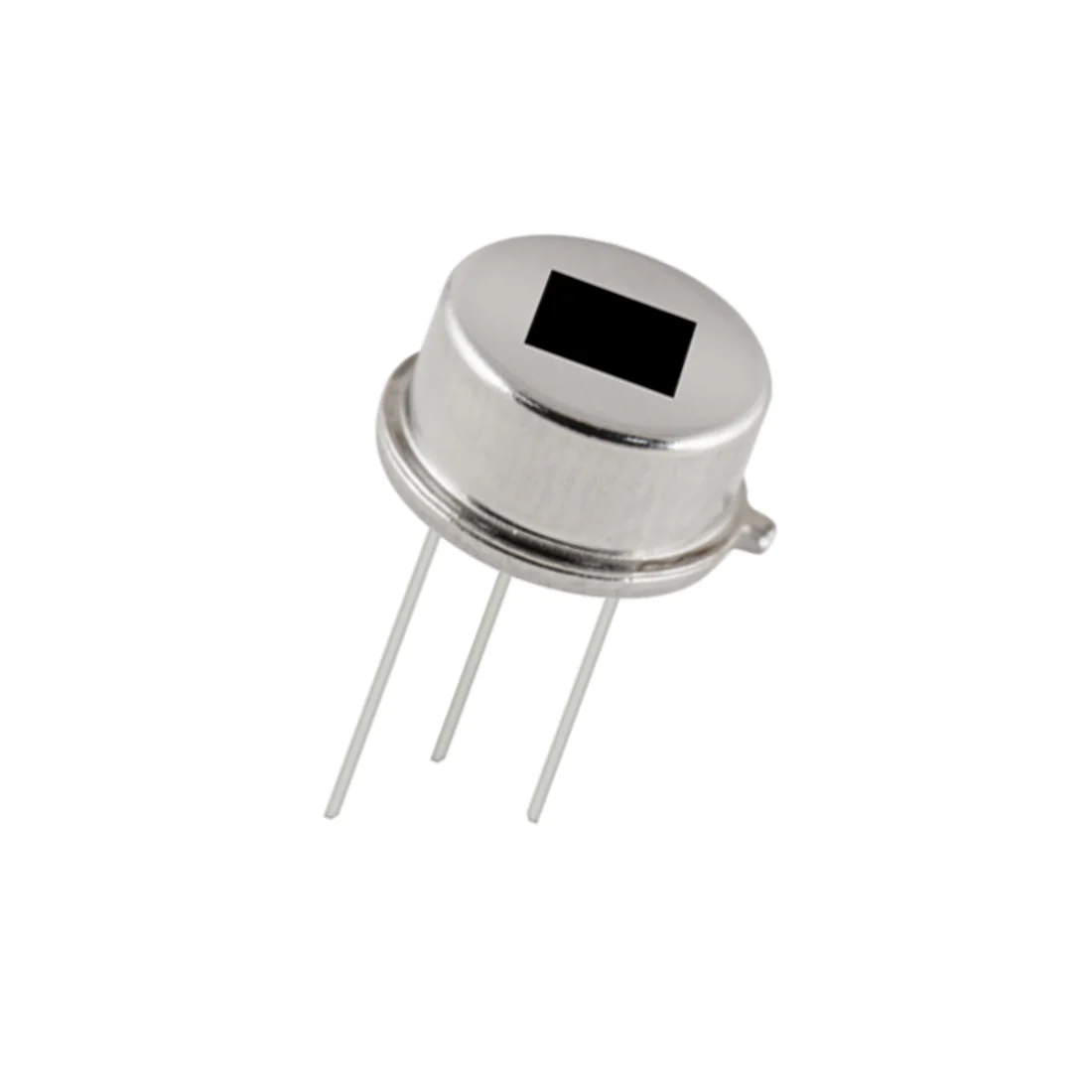

D204S 2 Element PIR Sensor Pyroelectric Infrared Analog Sensor High Sensitivity, Dual Element For Security Alarm Sensor

Description

Description:

The D204S 2-Element Pyroelectric Infrared Analog PIR Sensor offers reliable motion detection with enhanced EMI immunity, making it ideal for robust security system integration.

Specifications:

• Item Type: Sensor
• Model Type: PIR Sensor
• Model No.: D204 S
• Encapsulation Type: TO-5
• IR Receiving Electrode: 2×1mm, 2 elements
• Window Size: 4×3mm
• Spectral Response: 5—14μm
• Transmittance: ≥75%
• Output Signal: ≥3500mV [Vp-p]
• Sensitivity (dBm): ≥3300V/W
• Detectivity (D*): 1.4 ×108 cmHz1/2/W
• Noise[Vp-p]: 70mV
• Output Balance: 10%
• Offset Voltage: 0.3～1.2V
• Supply Voltage(V): 3—15V
• Operating Temperature(°C): -30—70ºC

Features:

• Anti-interference
• Custom design is available
• Higher in cost-performance
• Low power consumption

Package Included:

1 x D204 S 2 Elements Pyroelectric Infrared Analog PIR Sensor
