Description
Description:
The OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3 and 4 with Automatic Day Night Mode Switching is a custom-designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the small sockets on the board’s upper surface. This uses the dedicated Raspberry Pi’s onboard CSI interface, designed especially for interfacing with cameras. The camera supports night vision. It is compatible with all revisions of the Pi. Powered with a 5-megapixel OV5647 sensor, its best resolution is 1080p.
 Specifications:
| Model | OV5647 5MP 1080P IR-Cut Camera |
| Resolution | 1080p |
| Sensor | OV5647 |
| Camera | 5MP |
| CCD Size | 1/4inch |
| Aperture (F) | 1.8 |
| Focal Length | 3.6mm adjustable |
| Output Power for IR LED | 3.3~5v |
| Diagonal angle | 60 degree |
Features:
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded IR-CUT filter, eliminating color distortion due to IR light in the daylight
- Comes with infrared LED, supports night vision
- 5-megapixel OV5647 sensor
- Can Attach IR LEDs if Night Vision mode is required
- The screw hole on the camera is used to both fix the infrared lights and through the power for the lights.
Package Included:
- 1 x OV5647 5MP 1080P IR-Cut Camera

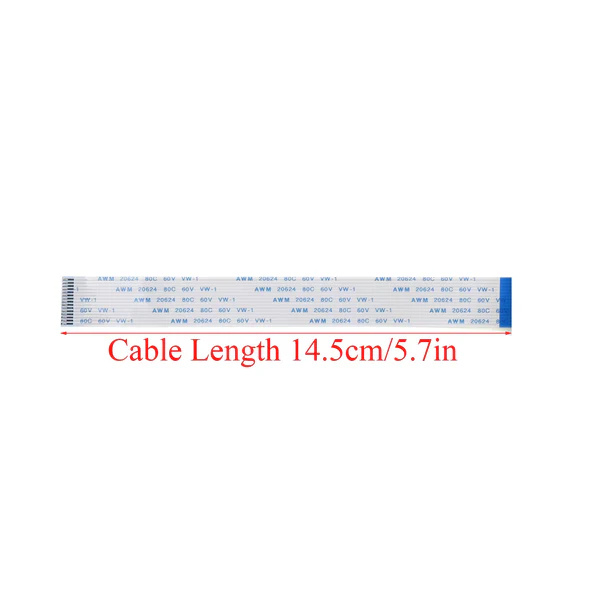

- 1 x 15-pin FFC Ribbon cable Strip
