Description

  • RPM: 300 at 12V
  • Voltage: 2V to 12V
  • Current: No load current and stall current are the function of voltage. For more data refer below tables
  • Clutch for non-continuous protection from overload conditions



Description:

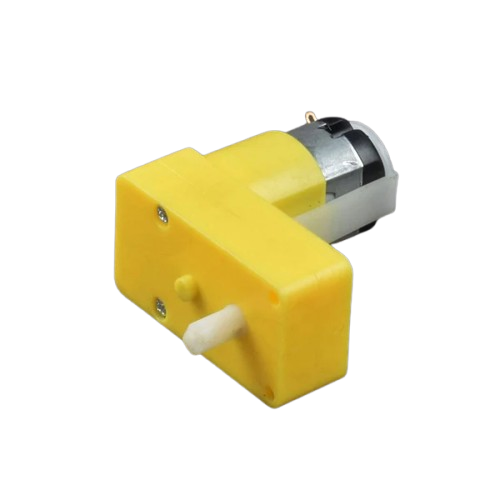

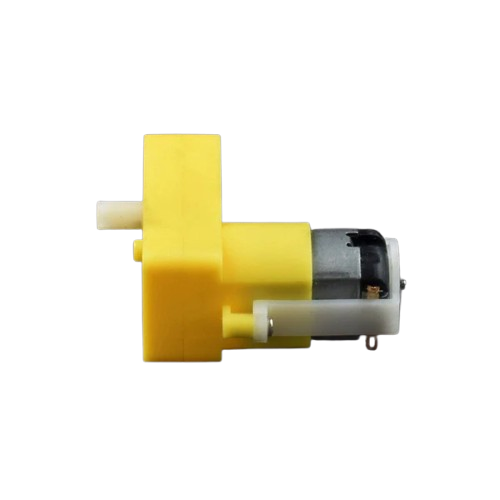

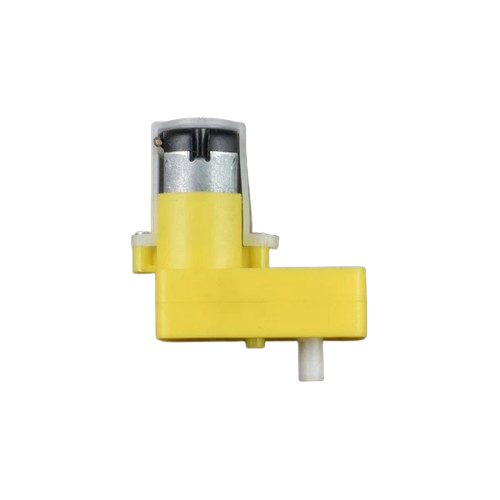

This is a 300 RPM low-cost single shaft DC geared motor. It is most suitable for lightweight robots requiring small power. This motor can be used with a 69mm Diameter Wheel for Plastic Gear Motors and an 87mm Diameter Multipurpose Wheel for Plastic Gear Motors. The Driveshaft has a clutch for non-continuous protection from overload which protects gears from sudden overload. Motor runs smoothly from 2V to 12V and gives a wide range of RPM, and torque. The table below gives a fairly good idea of the motorâs performance in terms of RPM, no-load current as a function of voltage and stall torque, and stall current as a function of voltage.

Features:

  • Cost-effectiveness of the injection-moulding process.
  • Elimination of machining operations.
  • Low density: lightweight, low inertia.
  • Uniformity of parts.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • Corrosion-resistance; elimination of plating, or protective coatings.
  • The quietness of operation.
  • Tolerances are often less critical than for metal gears, due in part to their greater resilience.
  • Consistency with the trend to greater use of plastic housings and other components.

Specification:

Operating Voltage 3~12 VDC
Shaft Length 8.5 mm
Shaft Diameter (Double D-type)
5.5 mm
No Load Current 40-180mA.
Rated Speed(After Reduction) 300 RPM
Rated Torque 1KgCm
Gearbox Shape L-Shape



Package Included:

1 x 300 RPM Single Shaft BO rectangle Motor
