Description
Description:

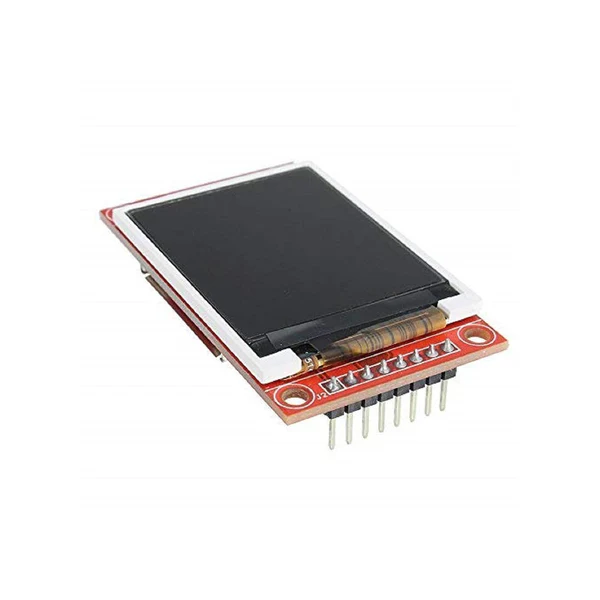

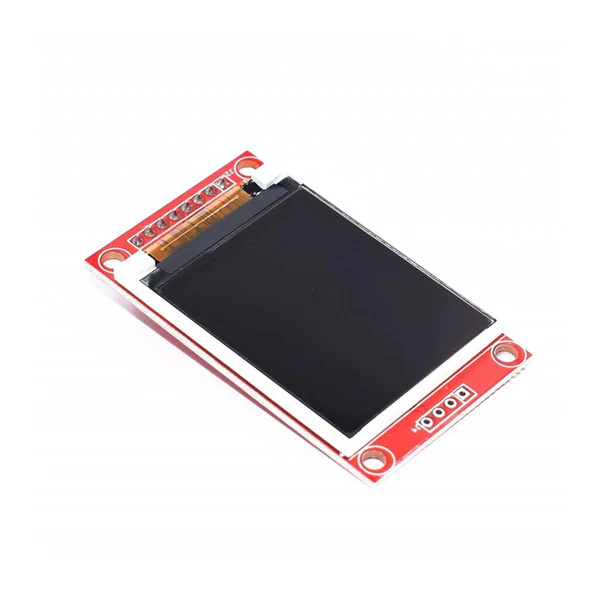

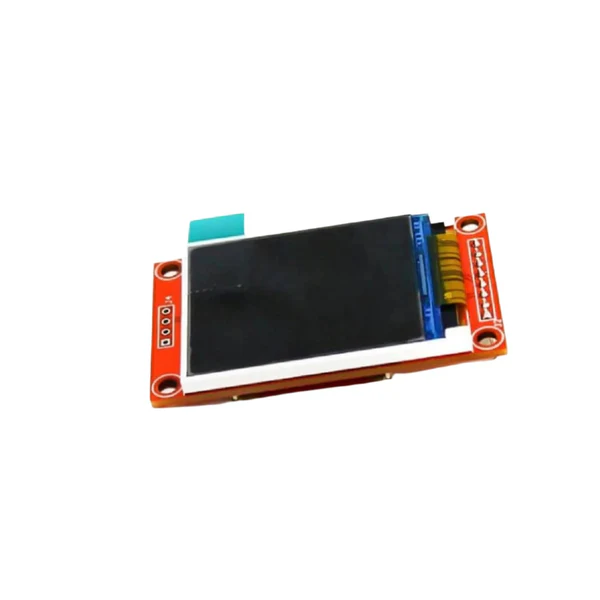

The 1.8-inch TFT LCD Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer. It can be used with every kind of microcontroller. The 1.8-inch display has 128×160 color pixels.
Specifications:
- Item Type: Display
- Input Voltage (V) 3.3 to 5
- Pixel Resolution 128 x 160
- Display Size (inch) 1.8
- Driver IC ST7735
- Interface Type SPI
Features:
- 1.8-inch serial SPI color display module
- Support analog SPI and hardware SPI
- The LCD has a wide viewing angle, the contrast is also very suitable.
- Good quality display.

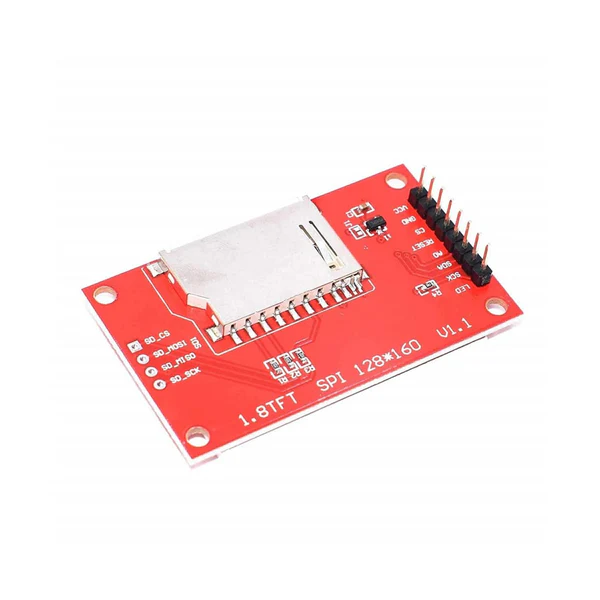

IO interface:
- RESET: Directly to the microcontroller IO
- CS: Directly to the microcontroller IO
- A0: IO control registers select
- SDA: IO control data transmission
- SCL: IO control SPI bus
- BL: High-Level 3.3V backlight on
Package Included:
1 x 1.8 inch LCD Display Module ST7735 Driver TFT LCD Display 128×160 LCD Display 4 IO LCD Display Arduino Compatible LCD Microcontroller Compatible LCDÂ
